How To Make Your Data Pop With Bubble Charts

ByAndy Marker| December 20, 2017

The world’s largest technology companies, titans like IBM and Apple, believe in a culture of design, with an emphatic focus on people-centered products and services being the best way to deliver products quickly and at scale. This design-first principle is an important component of data analysis and visualization.

Data analysis is about understanding, preparing, and validating the data. However, visualizing data to communicate stories and spot trends adds the design-first principle. A bubble chart is a type of data visualization that, when applied correctly and designed effectively, is a great way to take a design-first approach to presenting data.

In this article, learn why bubble charts are a useful tool for data visualization. Use the on-page navigation to jump ahead for tips on when, why, and how to use bubble charts, including a list of various software tools that exist for all levels of technical proficiency. Plus, get started creating basic bubble charts using Microsoft Excel 2016 by the tutorial provided.

What Is a Bubble Chart?

先设计,技术驱动的世界,使用visualizations like bubble charts to communicate a people-centered story is paramount. Bubble charts have the potential to compress and condense large datasets for hundreds, sometimes thousands of data points in a single view.

While scatterplot chart is ideal for showing the correlation between two values, a bubble chart adds a third dimension to visualize data, either in small multiples or across a few variables. Bubble charts are optimal for showing the relationship between data using the size of the data plot as the third visual element. The data is plotted and displayed using bubbles, or categorized circles (discs).

Instead of traditional charts that use two axes (x and y) such as column or line charts, bubble charts display a third dimension of data (sometimes referred to as the z-axis). The x- and y-axis of a bubble chart are numeric, not categorical, so the position of the data plotted is an indicator of two values. A bubble chart is capable of presenting four dimensions of data. The color (or color temperature) of the data bubble is the fourth dimension used to differentiate data points.

Bubble Charts for Sales and Marketing

Bubble charts, like all data visualization, are a form of storytelling. Sales and marketing professionals use data visualization to gain insight and communicate using raw data. A marketer might use bubble charts in a presentation instead of a list of bullet points to describe key advertising metrics that include multiple data series across different time periods. A single chart on a single slide tells the story of top-performing digital marketing campaigns that emphasize ROI from different online segments.

When to Use a Bubble Chart

Bubble charts create a digestible story for the viewer, providing a quick assessment of the relationship between different data — something bar and line charts don’t always accomplish. A bubble chart visually explores correlation (or association) between data.

精心设计的泡沫有效图表显示three fields of data using the position and proportion of the bubbles plotted. This type of chart is a helpful tool for analyzing data sets with multiple inputs, visualizing patterns, and finding trends using data analysis. For example, a period of time (x-axis), a value figure (y-axis), and a percentage of growth (bubble size).

A bubble chart is a dynamic tool for analyzing finance scenarios beyond standard time-series or whole-to-whole comparisons using line and bar charts. For example, comparing investment returns using formula-driven data from spreadsheets, over a period of time, for multiple categories of investments (mutual funds, index funds, stocks, bonds, etc.).

It is easier to explore the correlation between ROI and the investment category when the data appears in a bubble chart instead of presenting it linearly. Bubble charts contribute to the storytelling element of visualization for finding correlation for a data series.

Bubble Chart Tips

The bubble chart is an effective data visualization tool. However, like other charts and reports, a bubble chart is only as compelling as the data it represents.

记得要保持气泡图的目的mind before plunging forward with the work. If you have multiple data series that tell a story, or you’re looking for insight from your data and need to visualize the relationship between different data sets, consider using a bubble chart.

Here are some additional tips to consider when deciding whether a bubble chart is the right visualization to use.

  • Use Restraint:Data visualizations like bubble charts benefit from carefully thought out design. The idea of using colorful bubbles to display data is tempting because line and bar charts are ubiquitous and lack the unique visual appeal that colorful discs provide. However, if you do not have at least three dimensions of data, consider using a different chart for data visualization.
  • Clarify Intent:A detailed bubble chart with multiple data inputs conveys a lot of information at once. Help users navigate complexity with a clear introduction to the data and the intent of the chart by using a message as its title. Use visible axis titles, a data legend, and chart design principles such as clear borders, gridlines, and easy-to-distinguish colors to make the data stand out.
  • Embrace Proportion:The size of the bubble is critical to a user interpreting the data efficiently and accurately — particularly when the range of data is spread out over a specific axis. If the total area (instead of radius or diameter) of individual bubble plots convey meaning, make sure to clearly document the scale.
  • Odd Shapes:得到创造性和替代bubb的诱惑les for other creative graphics minimizes the effectiveness of bubble charts. Stick to bubbles (round discs) to represent data and accurately plot data. The exception is when you want to present negative (or zero) values. Use another standardized and easily recognized shape like a triangle or square to differentiate this data from the bubbles.

How to Create a Bubble Chart in Excel

This section is a step-by-step tutorial on creating a bubble chart and plotting data using Microsoft Excel 2016 (Office 365 edition). We adapted the data for this tutorial from a Google Analyticsdemo accountfor the Google Merchandise Store. Follow the steps below to create the bubble chart shown in this image:

Bubble Chart Image Final


  1. Insert Bubble Chart

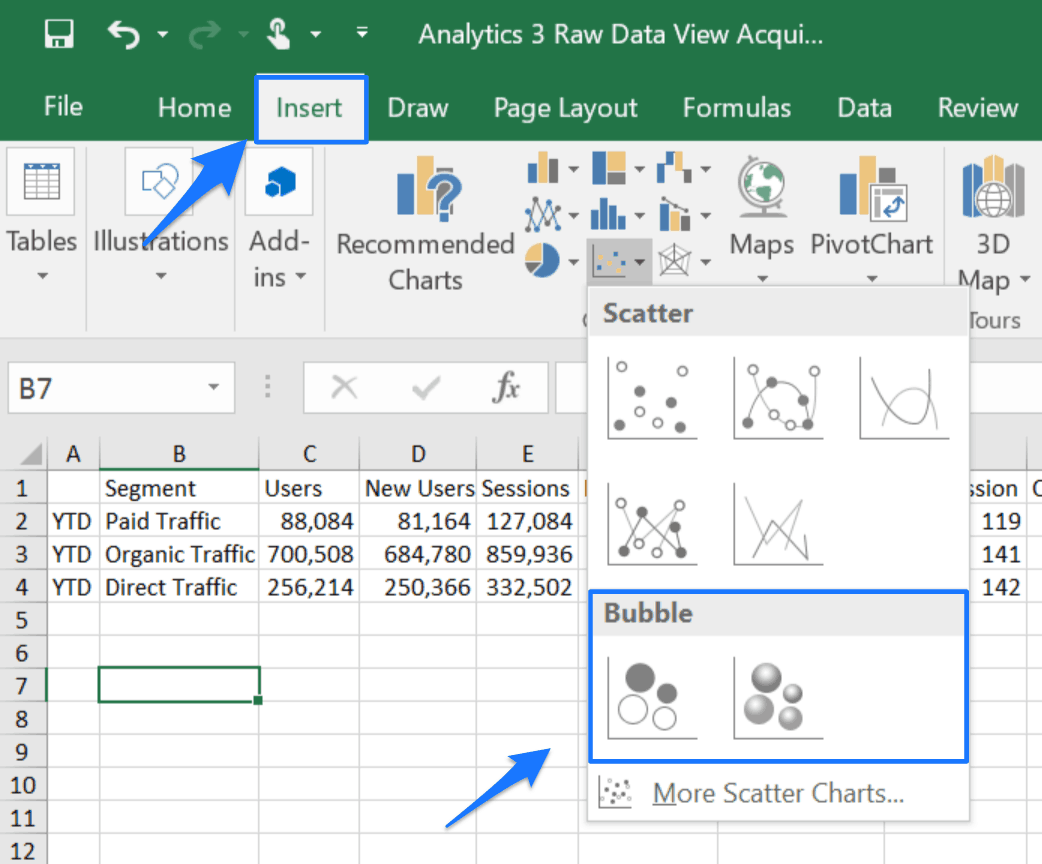

Open the Excel spreadsheet with your data and clickInsertfrom the menu. Hover and click the drop-down menu arrow forScatter (X, Y)orBubble Chartfrom the Charts sub-menu. There are two options underBubble— standard Bubble or 3-D Bubble. This tutorial uses the standard Bubble option, so click Bubble. A blank square will appear on the spreadsheet.

Screen Clip
  1. Add Data Sources

Right-click the chart and clickSelect Datafrom the menu.

Bubble Chart Image Design

From theSelect Data Sourcewindow, click theAddbutton under the Legend Entries (Series) section.

Bubble Chart Image Add
  1. Edit Data Series

To edit data previously added to the bubble chart, clickEditfrom the Select Data Source window. Click on the appropriate data in the spreadsheet that corresponds to each series cell listed in theEdit Serieswindow:

Bubble Chart Image 3
  • Click on the data or (type the name) of the series in theSeries namecell.

  • Click on the data for the x-axis in theSeries X valuescell.

  • Click on the data for the y-axis in theSeries Y valuescell.

  • Click on the data for the z-axis (or size) of your bubble chart in theSeries bubble sizecell.

  • ClickOK.

To make changes to existing data series, clickEditin theSelect Data Sourcewindow. Click theOKbutton to finalize the data source selections and return to the inserted bubble chart.

Bubble Chart Image Edit

ClickAddto include multiple data series in the bubble chart and repeat the Edit Series steps above for each new Legend Entry (Series). Add the data for Organic Traffic and Direct Traffic which will place more than one bubble on the chart.

Bubble Chart Image Add Legend Entries
  1. Format and Design

The final step to creating your bubble chart is formatting the data and adding design elements like axis titles and data labels. This step turns a raw bubble chart into a compelling data visualization. Size, color, and various formatting choices help make the chart more visually appealing.

Format Axes

  • Excel generates automatic axes and unit intervals based on the data series for the bubble chart.

Bubble Chart Image 4
  • To changeAxis Optionslike bounds and unit intervals double click on the vertical y-axis area of the chart and use theFormat Axismenu.

  • For this tutorial, we’re changing the Bounds > Minimum to zero, but you can click on the tabs (Fill & Line, Effects, and Size & Properties) to make other alterations.

Bubble Chart Image Axis Options
  • Repeat this step to format the Axis Options for the horizontal x-axis by double clicking the bottom area of the graph.

  • For this tutorial, we are also changing the Bounds > Minimum of the x-axis to zero (shown below).

Bubble Chart Image Axis Options 2

Add Chart Style and Elements

Click the bubble chart and theDesignsub-menu options appear in the top ribbon. Select a pre-formattedChart Styleor click theAdd Chart Elementand click options likeChart Title, Legend,andData Labelsto make adjustments.

Bubble Chart Image Add Chart Element
  • There is a shortcut to the Chart Elements. Click the bubble chart and three icons appear on the right. Select theChart Elementicon to add or remove elements likeAxis Titles, Gridlines, andError Bars.

  • For Microsoft Excel 2013, click theDesign taband clickAdd Chart Element. Select fromCentered OverlayorAbove Chartoptions from the Chart Titles option.

Bubble Chart Image Chart Elements
  1. Excel Bubble Chart Template

To save time and experiment with different styles and formats, save your bubble chart as a template in Excel. Right-click the bubble chart and clickSave as Template. Name the chart template in the File name cell. ClickSave.

Bubble Chart Image Save as Template

More Data Visualization Tools for Bubble Charts

Microsoft Excel is one of many software tools you can use to create and manage bubble charts. The market for data visualization tools continues to evolve and offer features that provide new ways of turning raw data into a compelling message.

  • Google Data Studio:Business intelligence and dashboard tool from Google. Connect data sources from Google Sheets and Google Analytics accounts and convert data into dashboards featuring bubble charts and other reports. Data Studio offers “connectors” that link data across products like AdWords and YouTube Analytics, and allows for multiple data sources in a single report.
  • Infogram:Create visualizations and reports with more than 35 interactive charts, including bubble charts, and more than 500 maps. Infogram features a drag-and-drop editor tool and a large database of GIFs and images to customize data visualization.
  • RAWGraphs:An open source framework that merges spreadsheet applications with vector graphics editors (for example, Adobe Illustrator). RAWGraphs is a web-based application with no server-side operations so it does not store or make data available to anyone but the user.
  • Slemma:Report generation without the code. Slemma Chart Designer allows non-technical users to build customized reports with bubble charts and other data visualization. Connects with third-party services and software integrations such as cloud databases, CRM, and social media platforms.
  • Tableau:Self-service business intelligence platform for data discovery, visualization, and reporting. Drag-and-drop editor interface for non-technical users to navigate, create, and share customized dashboards featuring interactive visualizations including bubble and scatterplot charts.

What Is a Bubble Chart in Software Engineering?

Software engineers create web-based bubble charts with different programming languages instead of a graphics-based interface like the previously listed bubble chart makers or spreadsheet software. If you have the technical proficiency, or just want to practice creating bubble charts by writing code, here’s a list of data visualization tools that software engineers use:

  • Google Charts:Provides a free chart gallery with ready-to-use chart templates, including scatterplot charts and bubble charts. Google Charts recommends using JavaScript to embed the bubble chart on a web page, and uses HTML5/SVG technology for mobile-friendly data visualizations and cross-browser compatibility. A user will not need to install plugins or additional software to view a bubble chart made with Google Charts.

  • AnyChart:A flexible JavaScript (HTML5) based tool for embedding interactive bubble charts and other data visualizations into web-based or mobile projects. AnyChart offers integration with Google Sheets and provides dashboards for on-premises or SaaS systems with out-of-the-box capabilities for data visualization.

  • ChartFX:Business intelligence and data visualization for developers from SoftwareFX. ChartFX emphasizes visualization and data analysis with tools such as OLAP and IDE integrations that span seven development platforms including Microsoft Visual Studio, Java, HTML5, and iOS.

  • Python Graph Gallery:Developed and managed by Yan Holtz, this project is an online gallery to promote data visualization with Python. This graph gallery features hundreds of Python charts, including scatterplot and bubble charts, all with associated reproducible Python code.

  • ZingChart:A dependency free, JavaScript charting library for visualizing data in web applications. ZingChart provides dozens of built-in chart formats including bubble charts and bubble pie charts.
