How to Create a Gantt Chart in Apple Pages: A Mac Tutorial

ByDiana Ramos| November 18, 2020

If you want detailed, step-by-step instructions on how to create a Gantt chart in Apple Pages, look no further. Our easy-to-follow tutorial for Mac users will show you how to make and customize a Gantt chart.

Included in this article, you’ll find the most helpful instructions on how to build a basic Gantt chart using Apple Pages, complete with screenshots and useful tips. Learn how tocustomize the chart. If you prefer not to build one from scratch, download a freeGantt chart template in Apple Pages.

How to Create a Gantt Chart in Apple Pages

Enter Project Data into a Chart in Pages

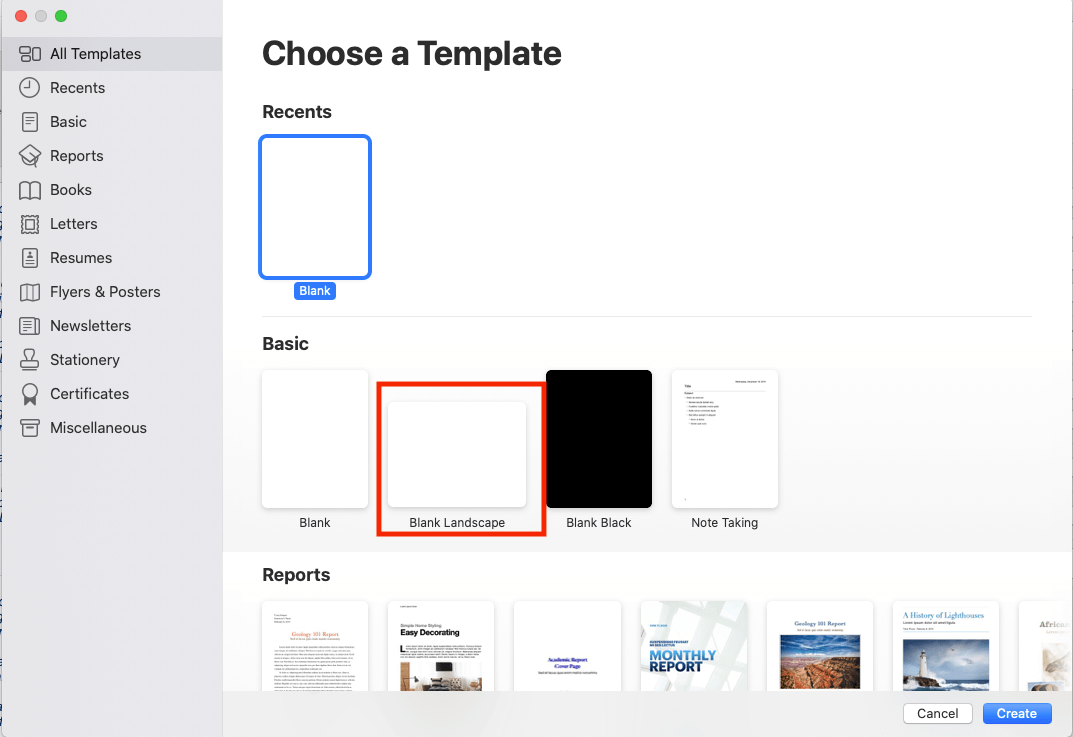

  1. Open a blank document.
    Open Pages and double-click onBlank Landscape.
    Choose Apple Pages Template

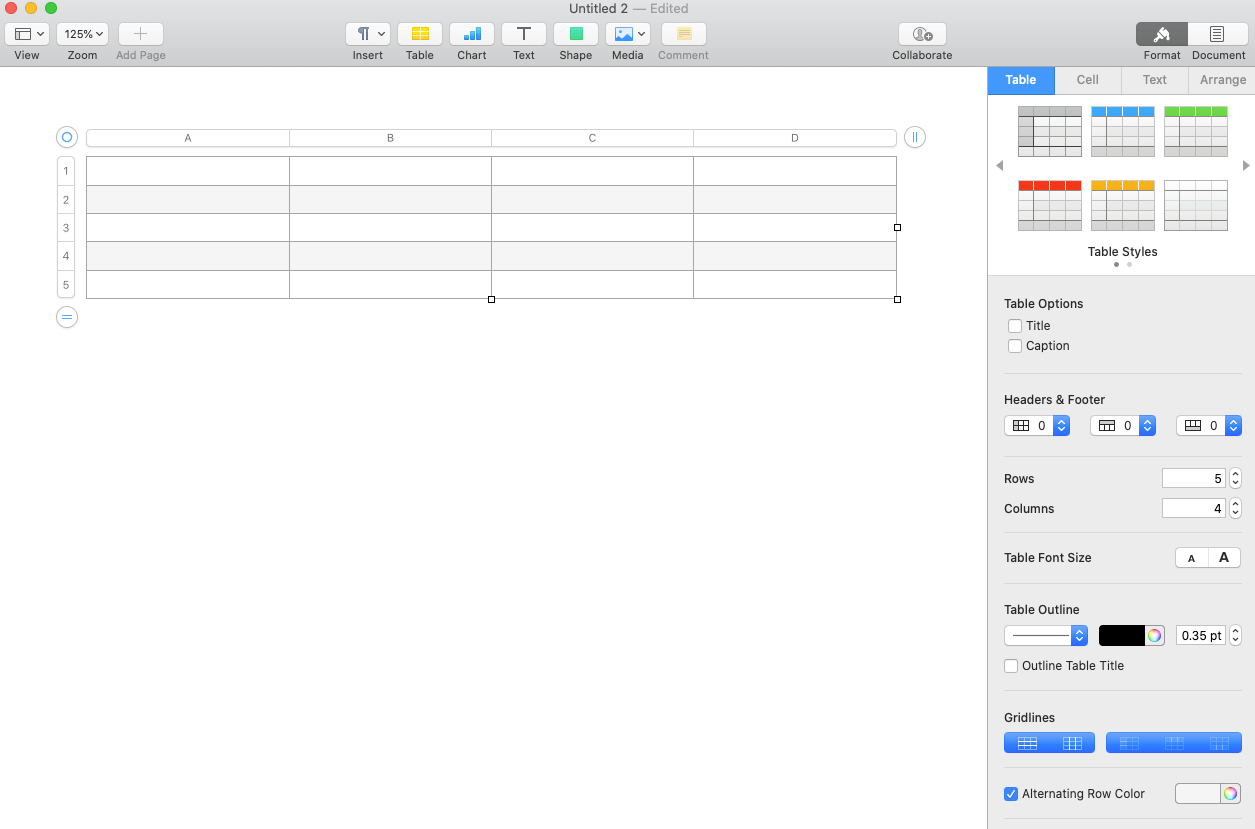

  2. Add a table.
    ClickTableon the Pages ribbon and click on a table. Note: Later in this tutorial, you will learn how to customize any table you select.
    Pro Tip:Your chart should have three rows: one for tasks, one for start week, and one for duration.
    Create Apple Pages Chart
    Pro Tip:The number of columns in your table should equal the number of project tasks you have. Example: If you have four project tasks, your chart should have four columns.

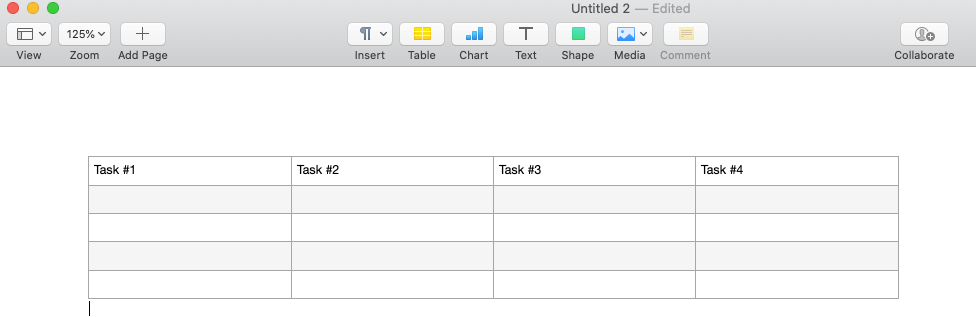

  3. Add project tasks.
    List your project tasks in the first row. Add the first task in cell A1.
    Pro Tip:Keep task names short, so they fit on the graphic.
    Add Project Tasks

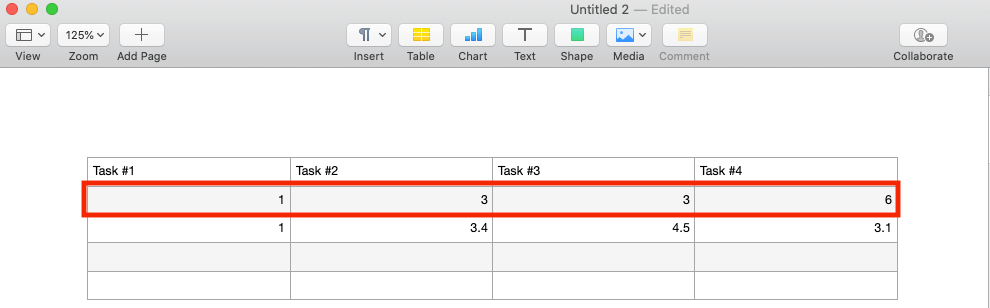

  4. Add the start week for each phase.
    In the second row of the table, add the start week for each task. Example: Underneath your first project task, enter the start time in weeks.
    Pro Tip:All project tasks should be mapped out in weeks, so the Gantt chart can show accurate timelines.
    Add Start Week

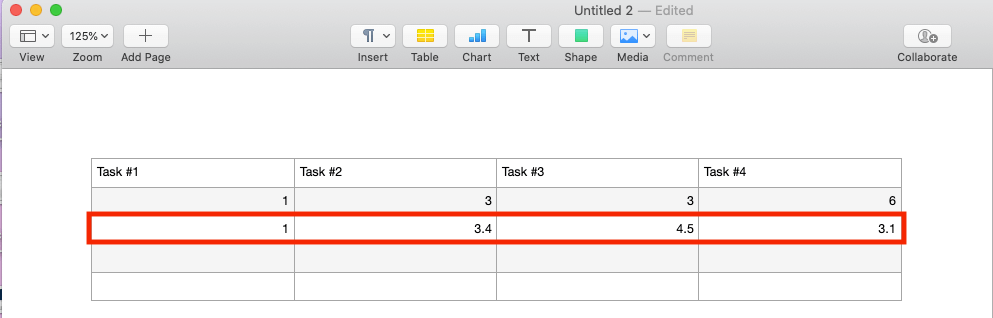

  5. Add the task duration.
    In the third row of the table, add the duration of each task (the amount of time required to complete each task) in weeks.
    Add Task Duration

Add a 2D Stacked Bar Chart to the Pages Document

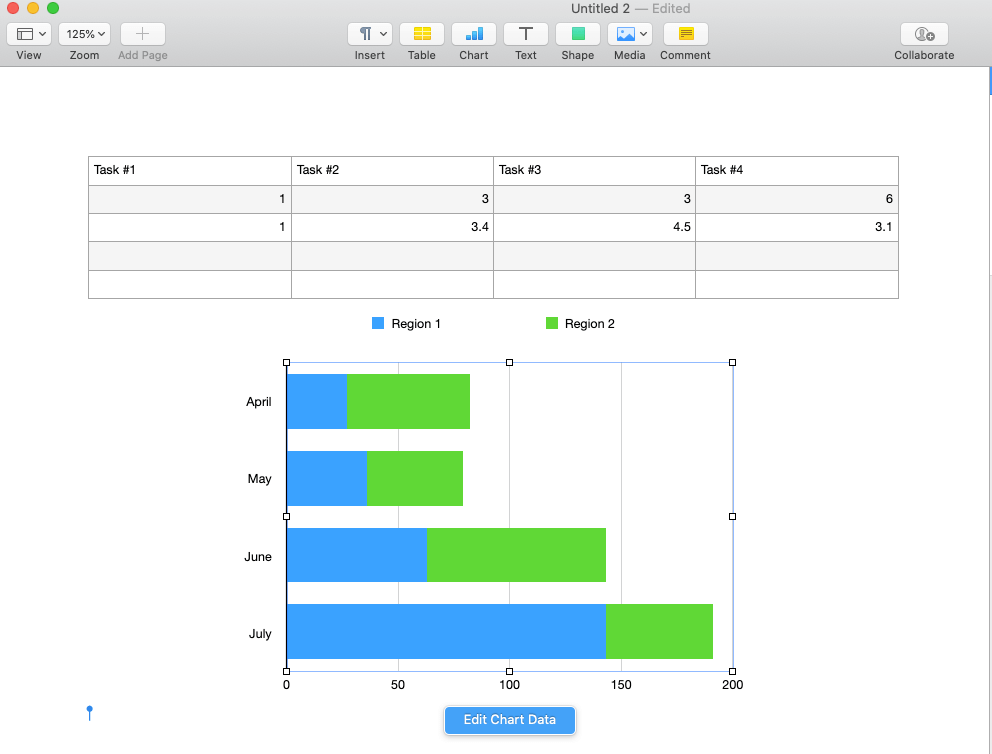

  1. Build out the Gantt chart.
    ClickInserton the Pages menu bar. ClickCharts>2D Stacked Barto add a basic stacked bar chart to the page.
    Add Stacked Bar Chart

Input Project Data in Your Chart

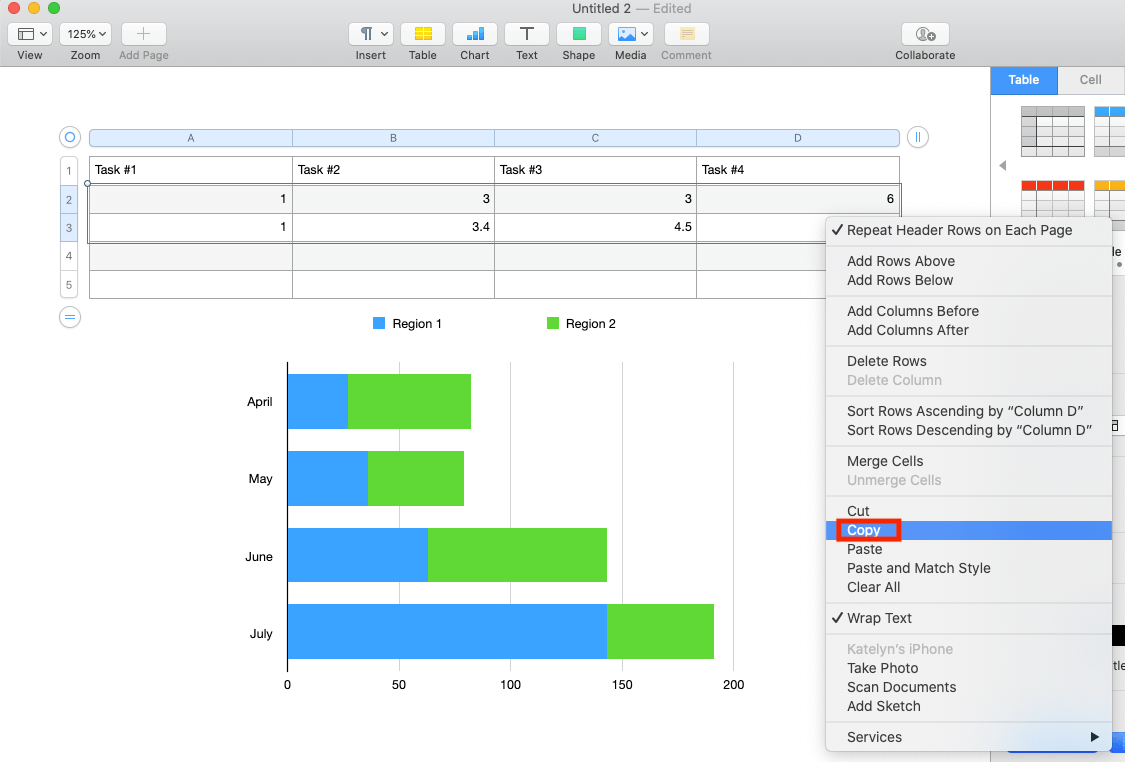

  1. Select all project data.
    Highlight the table with the project data, then right-click and clickCopy.
    Copy Chart Data

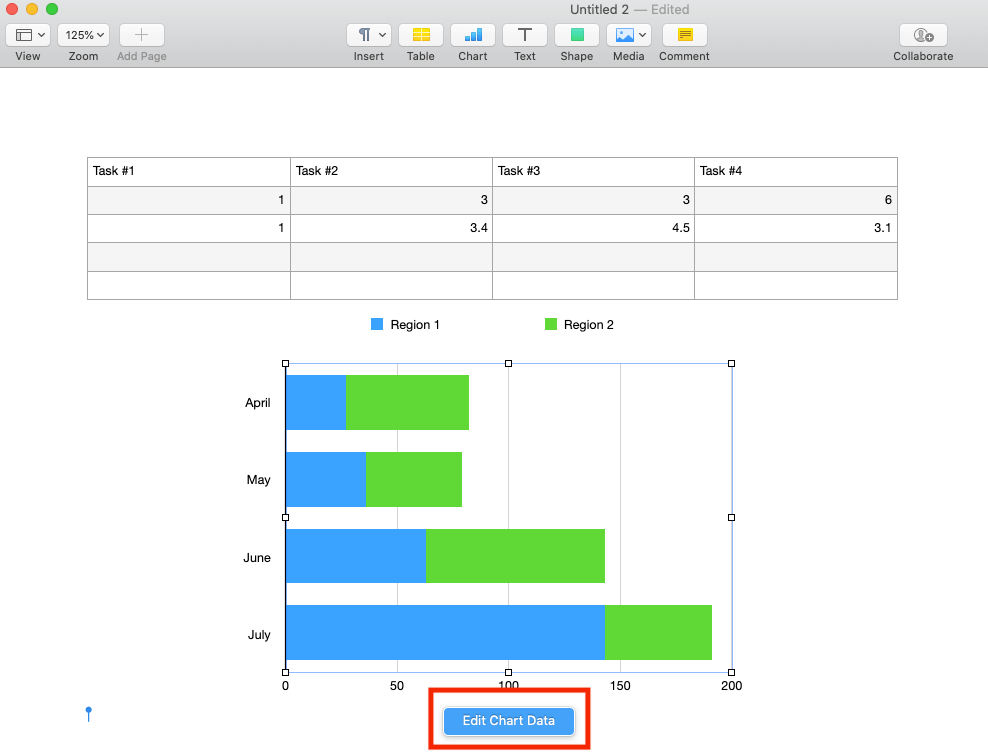

  2. Edit chart data.
    Click on the stacked bar chart. Click the编辑图表数据button.
    Pro Tip:This button appears when you select the chart area and disappears when you click elsewhere on the page.
    编辑图表数据
  3. Paste copied project data in chart.
    In theEdit Chartwindow, click the second cell in the top row (the cell with the wordApril). Press命令+ Von the keyboard to paste the copied data. The graphic updates to display your project data.
    Paste Chart Data

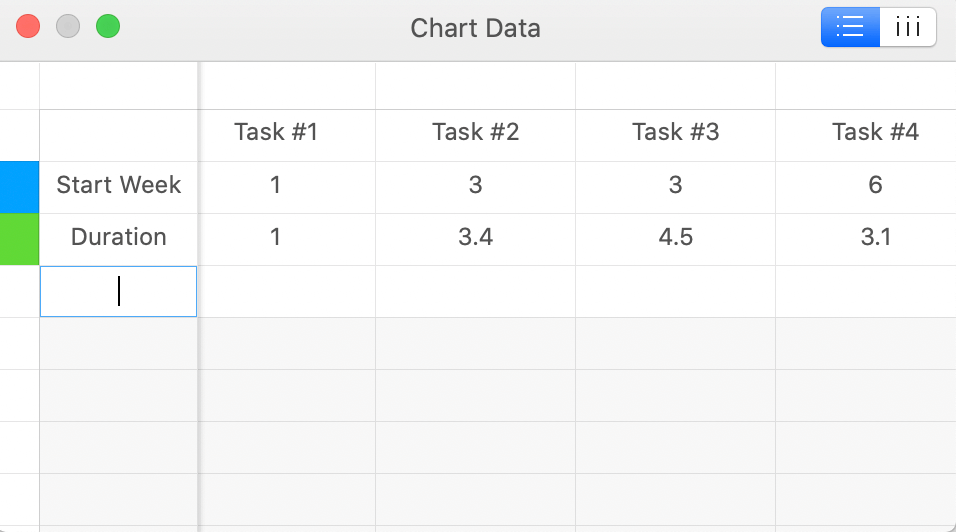

  4. Rename rows in the new data table.
    In the first column, click the cell that statesRegion 1and typeStart Week. Click the cell withRegion 2and typeDuration.
    Add Chart Labels

Turn the Chart into a Gantt Chart

  1. Double-click on a blue bar in the chart.

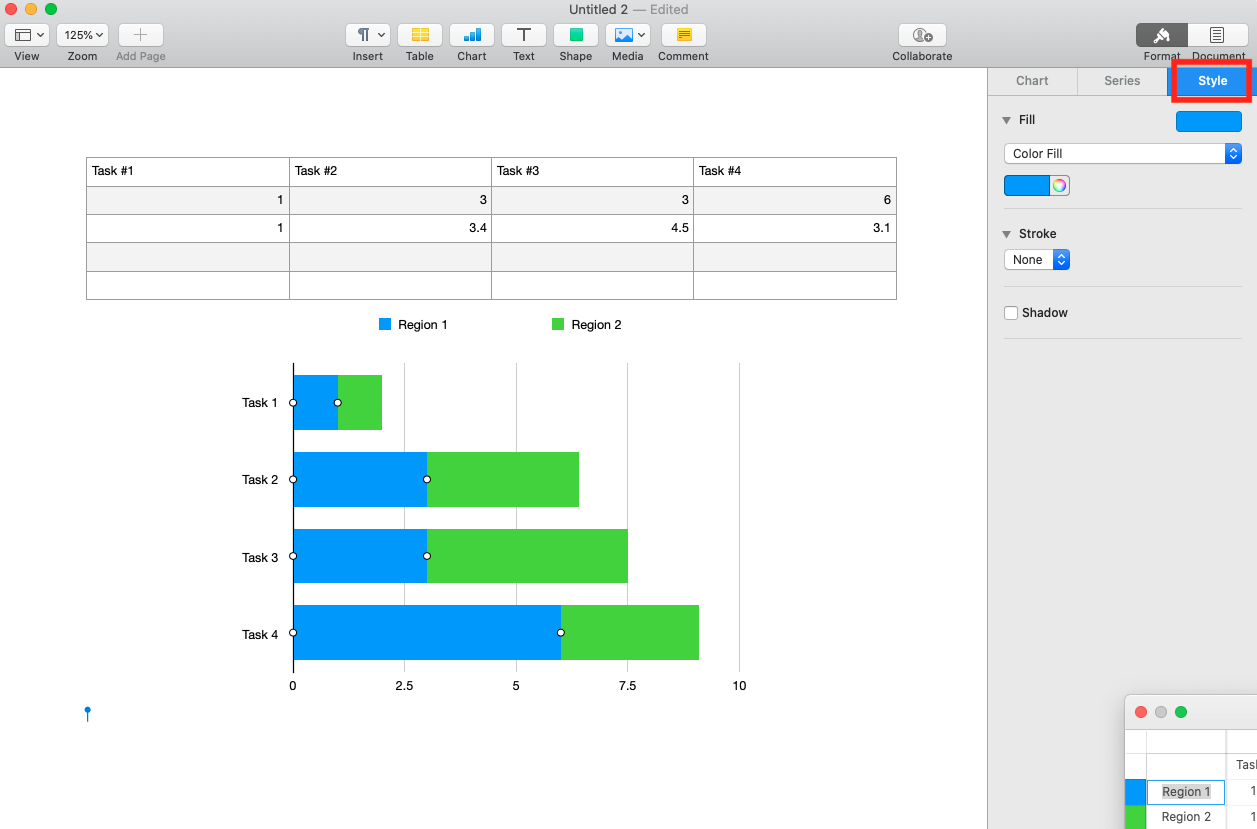

  2. Customize the chart style.
    In theFormatmenu on the right panel of the page, clickStyle.
    Customize Chart Style
  3. Remove the color fill.
    Click theColor Fillbar, then clickNo Fill. The resulting graphic will look like a Gantt chart that shows the duration in weeks for each task.
    No Fill

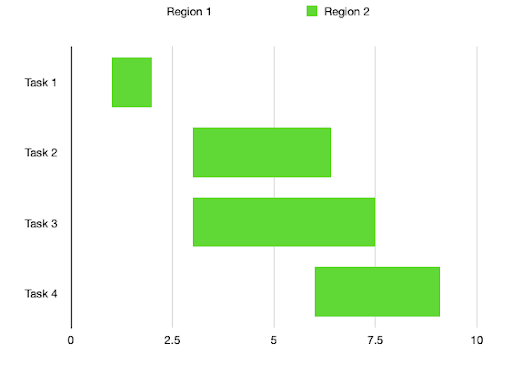

    Complete Apple Pages Gantt Chart

How to Adjust Task Durations on a Gantt Chart in Pages

Once you set up all the tasks and task durations on the Gantt chart, you’ll quickly see how tasks overlap. You’ll also be able to see if the duration of a task is too long or too short, or its order placement needs to shift.

Let’s say you’re building a house, and the taskpaint the wallsstarts before you complete theput up drywall task. You’ll need to alter the durations or push back some tasks to make your project plan work. To do so, follow these simple steps:

  1. Click on the chart area.
  2. Click the编辑图表数据button. The window with all your chart data will appear.
  3. Adjust the start weeks and durations by adjustingStart WeekandDurationnumbers for tasks. You can also add or remove tasks by deleting them from the data set.

As your project progresses, you might need to update or change the dates and durations more consistently.

Customize a Gantt Chart in Apple Pages

Adding your own style to the Gantt chart can make it appear more professional and help you to better identify key project tasks. Color-coding tasks is useful if you plan on grouping tasks together and helps you create a better visual overview of your project.

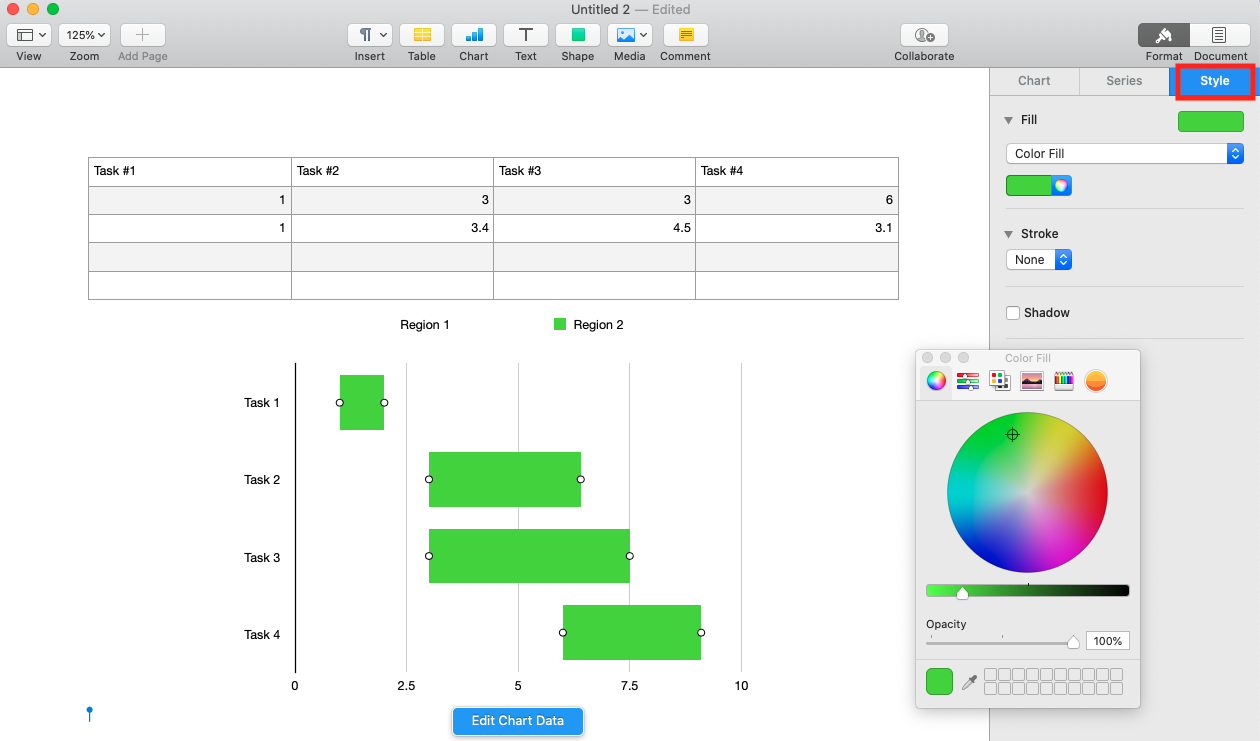

Change the Color of Task Bars on a Gantt Chart

  1. Click on the chart area and select any of the bars.
  2. Select a color.
    In theFormattab, clickStyle. Click the color wheel and choose a color.
    Customize Chart Colors

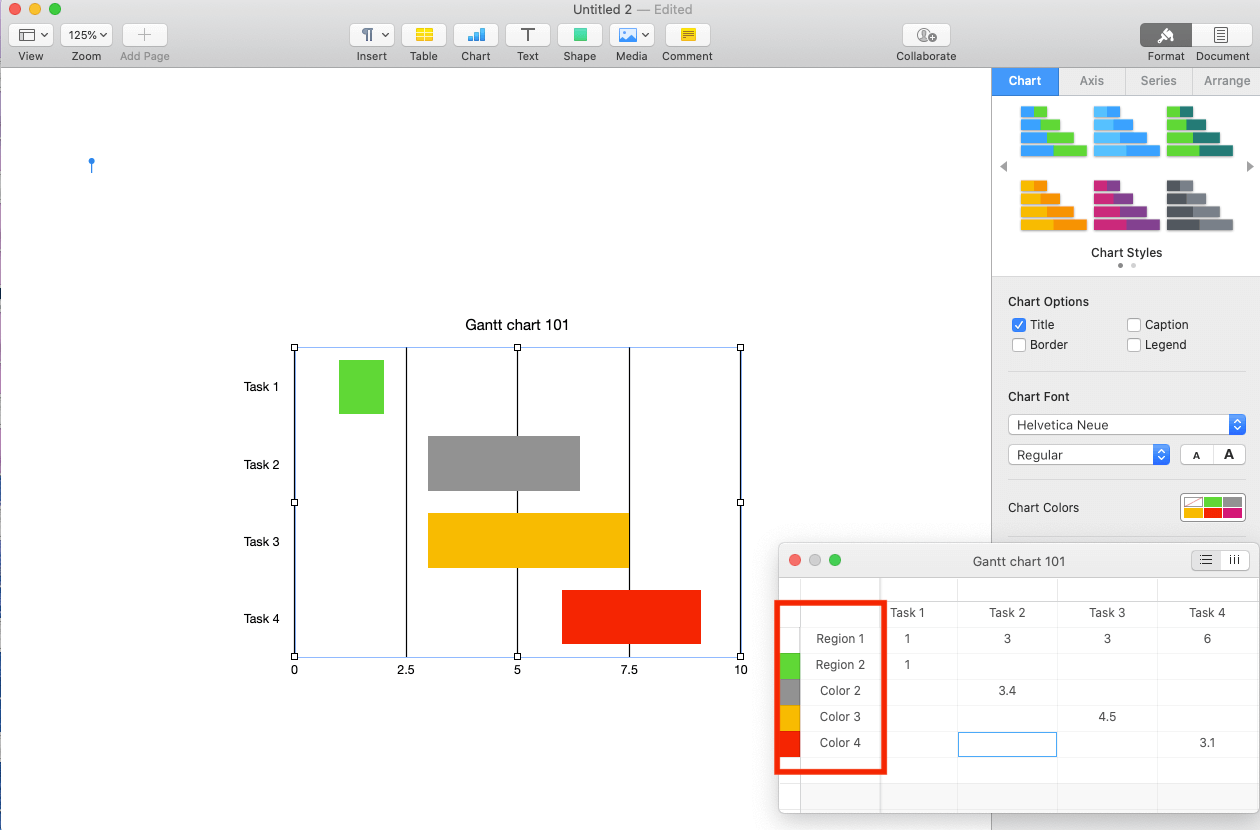

Change the Color of an Individual Task Bar on a Gantt Chart

  1. Add rows.
    Click on the chart, then click the编辑图表数据button. Click on the last row in your chart, then right-click and clickAdd Row Below. Repeat this step to insert 2-3 rows beneath theDurationrow in your chart to create a separate series.
  2. Label each color.
    Name these rows颜色2,上校or 3, Color 4, and so on for as many new colors you want to add to the chart.
    Customize Individual Task Bar Colors

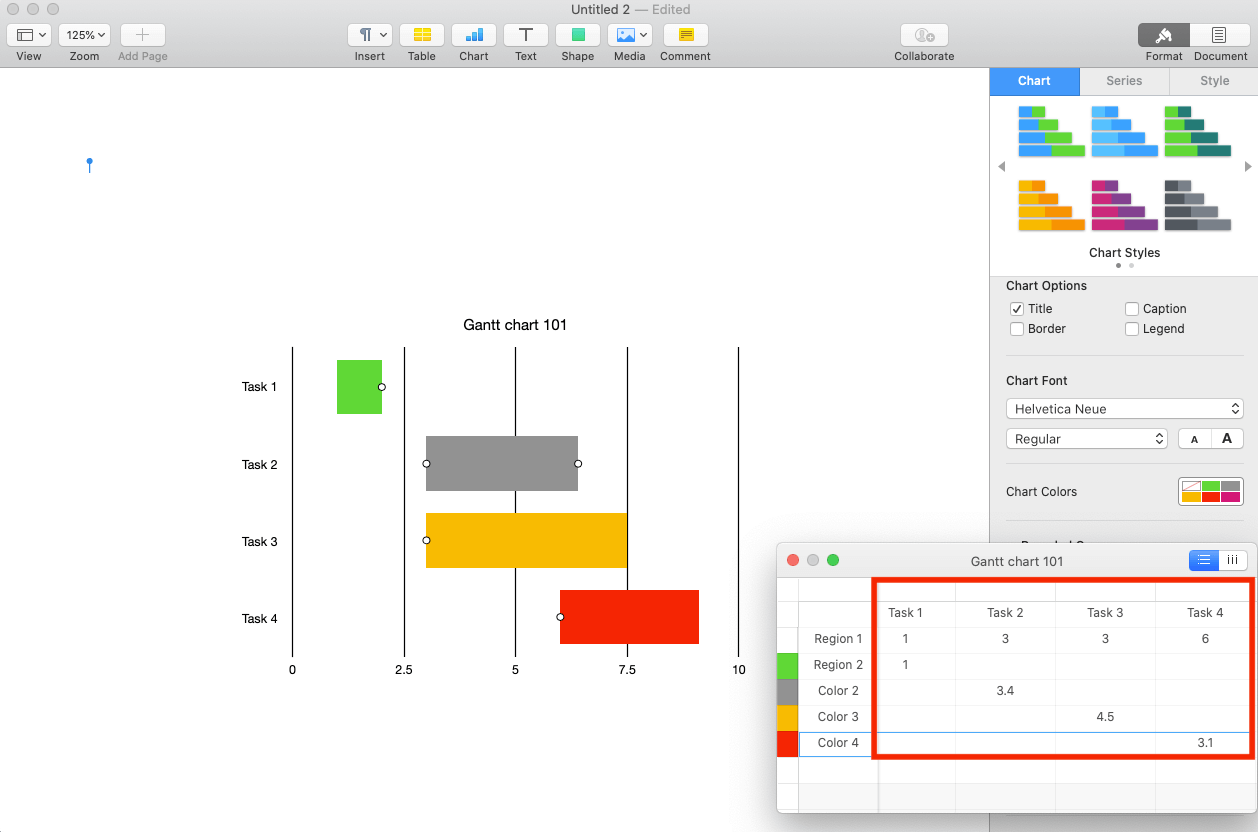

  3. Change the color of a task bar.
    Select the duration value in its original row, then cut and paste it into one of the new rows. Note: You need to keep the value in the same column.
    Pro Tip:Any tasks withDurationvalues on the same row are part of the same series, so all tasks in that row change simultaneously. Tasks withDurationvalues on different rows are considered part of a distinct series that you can customize separately.
    Update Chart for Colors

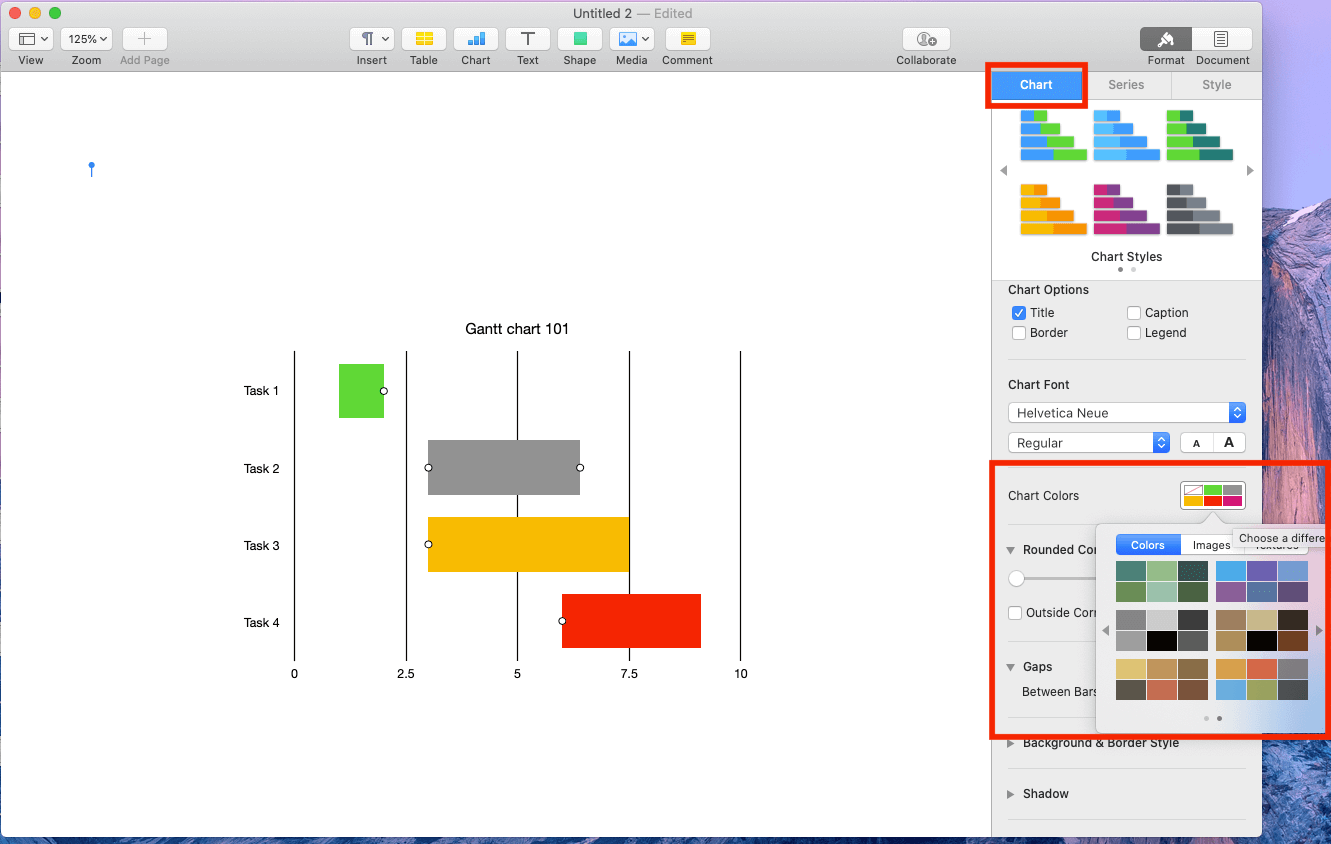

  4. Customize task bar colors.
    Click on the chart. TheCharttab appears in theFormatmenu. ClickChart Colors, then click a color theme. Note: By changing the color scheme, you add theStart Weekbars to the chart. Follow these steps to remove the color fill, so that you still have a Gantt chart.
    Chart Color Options

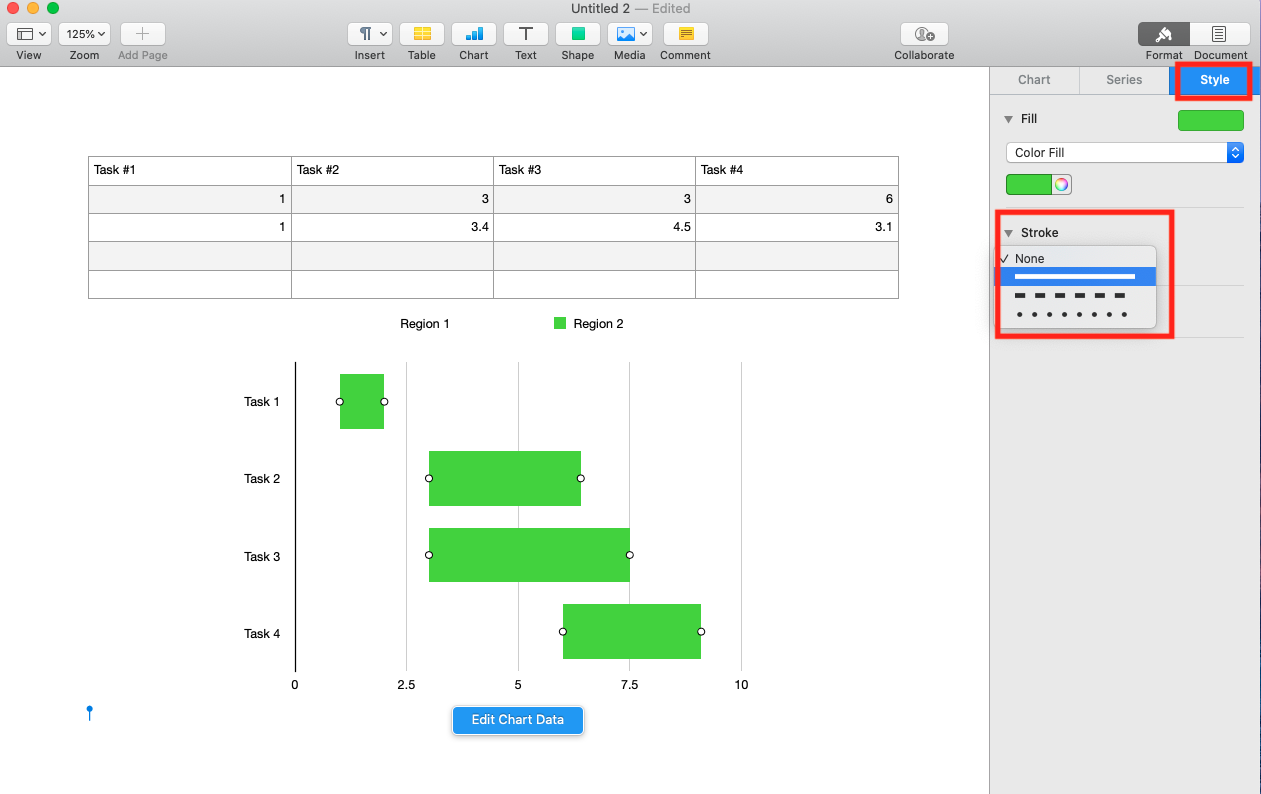

Customize Borders and Shadows of Task Bars

  1. Click aDurationbar on the Gantt chart.
  2. Adjust borders.
    In theStylemenu, click theStrokebutton (add a border to the bar), then click the desired stroke. Adjust the color and point (thickness of the border).
    Customize Chart Lines

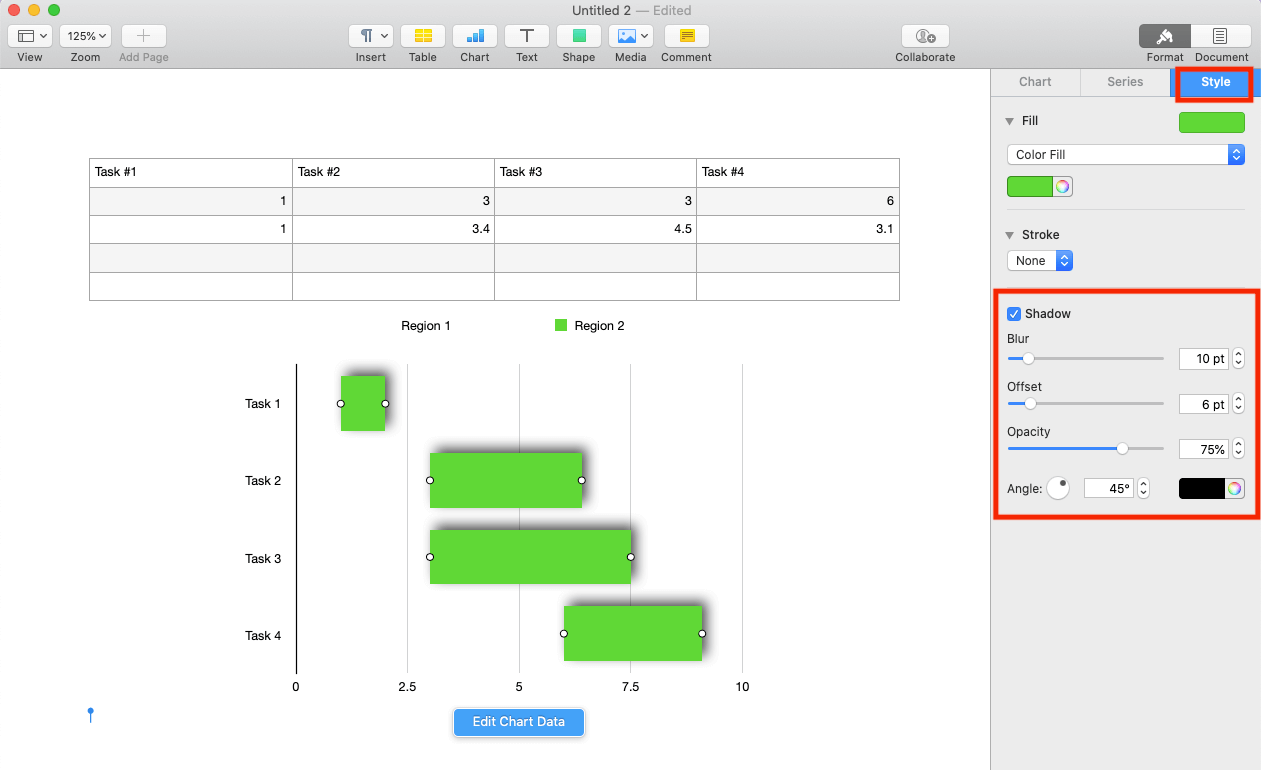

  3. Add effects.
    Click theShadowbox to create shadows.
    Customize Chart Shadows

Display Task Durations on a Gantt Chart

  1. Highlight all bars on the chart.
    Click and hold downShifton your keyboard while also clicking on eachDurationtask bar. TheSeriestab will appear in theFormatmenu bar.

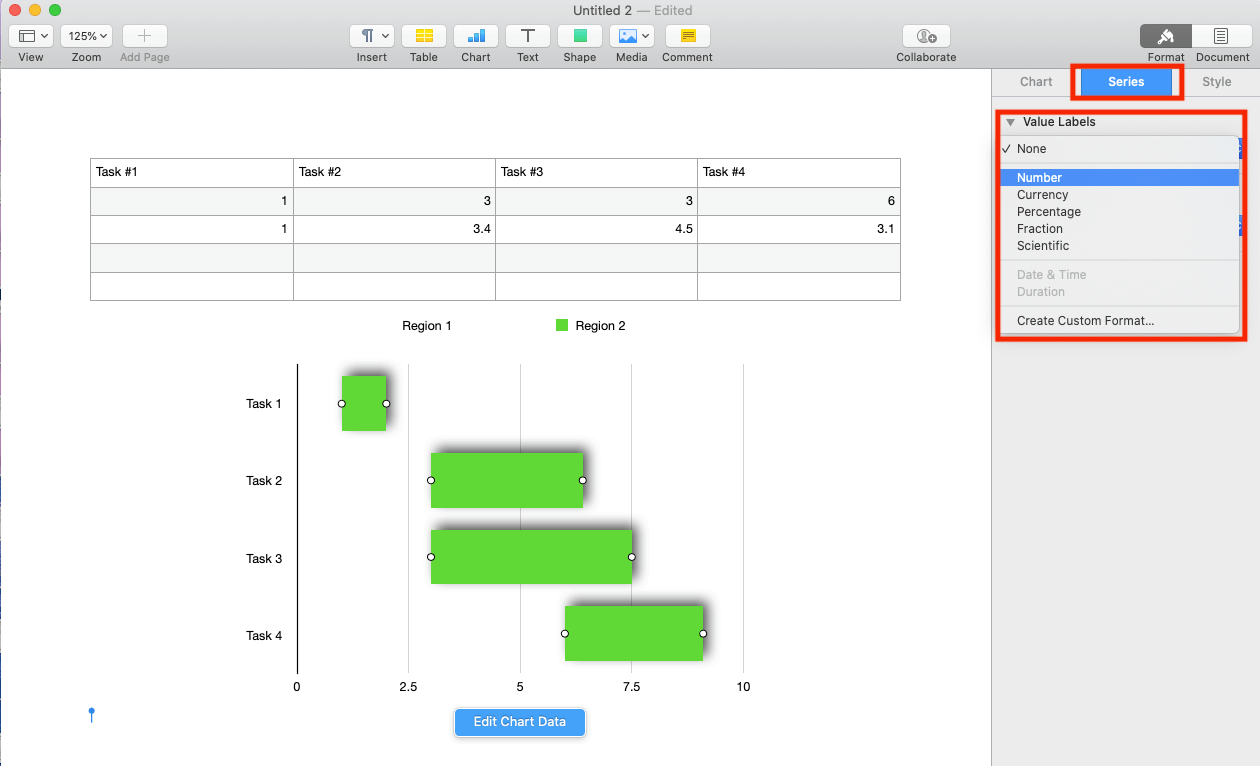

  2. Add week counts.
    Click theValueLabels, then clickNumberfrom the dropdown menu. The number of weeks the task should take will appear on the task bar.
    Show Chart Numbers

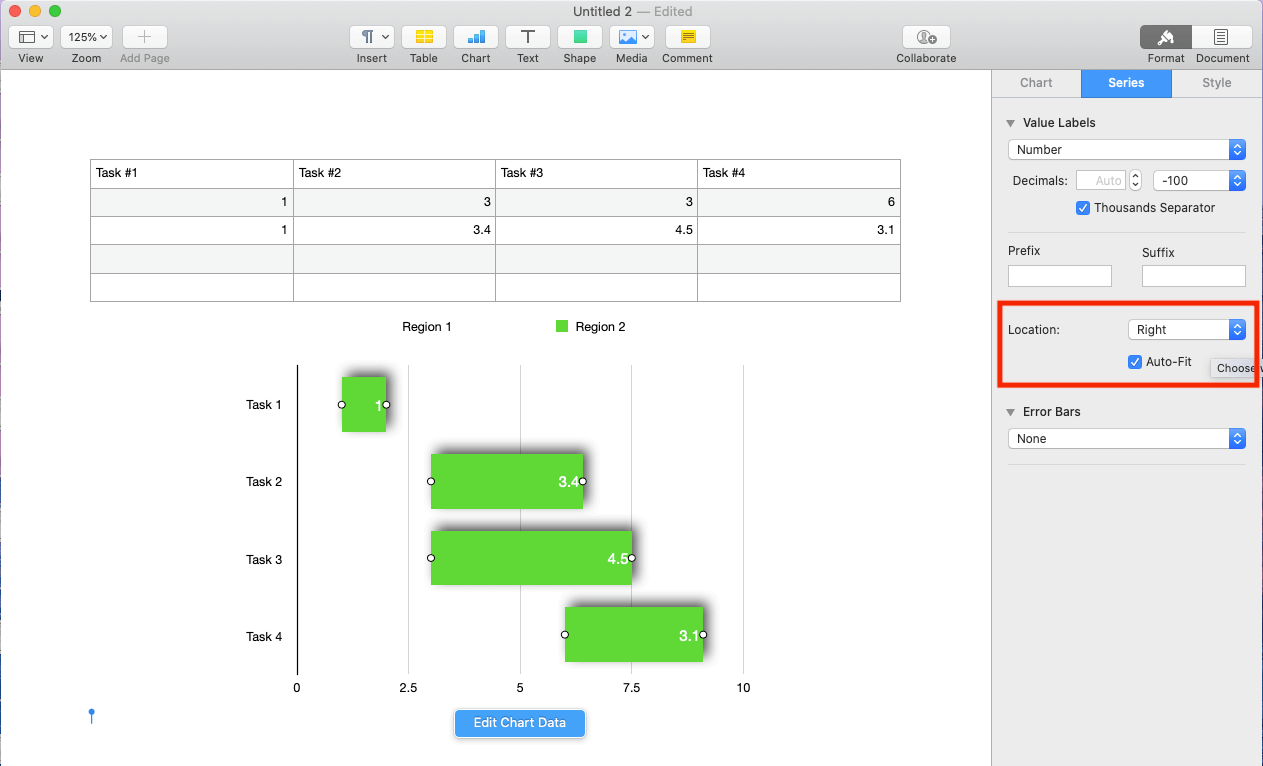

  3. Change the placement of the value labels on the bars.
    Click the dropdown menu associated with Location, then click on your preference:Right,Middle, or.
    Update Number Location

Customize the Area Around a Gantt Chart

Not only can you customize the task bars, you can also customize the area surrounding the Gantt chart.

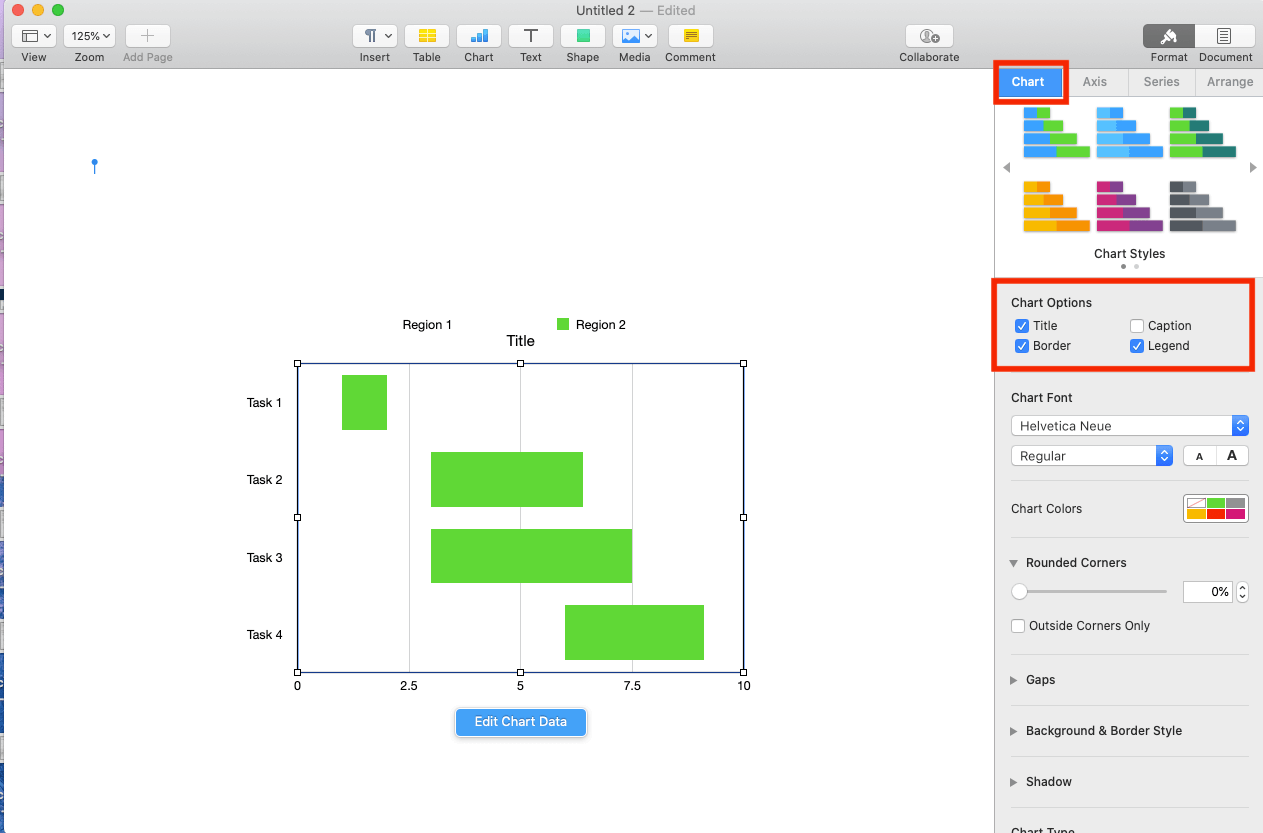

Add a Title and Borders to a Gantt Chart

  1. Click and highlight the entire chart.
    Click on theCharttabs in the Format menu.
  2. Click theTitleandBorder boxes.
  3. Customize the title.
    Click on the wordTitleat the top of the chart, and type your title in the resulting box. Use the options in the ChartTitletab in the Format menu to adjust font, color, style, and alignment.
    Add Chart Title

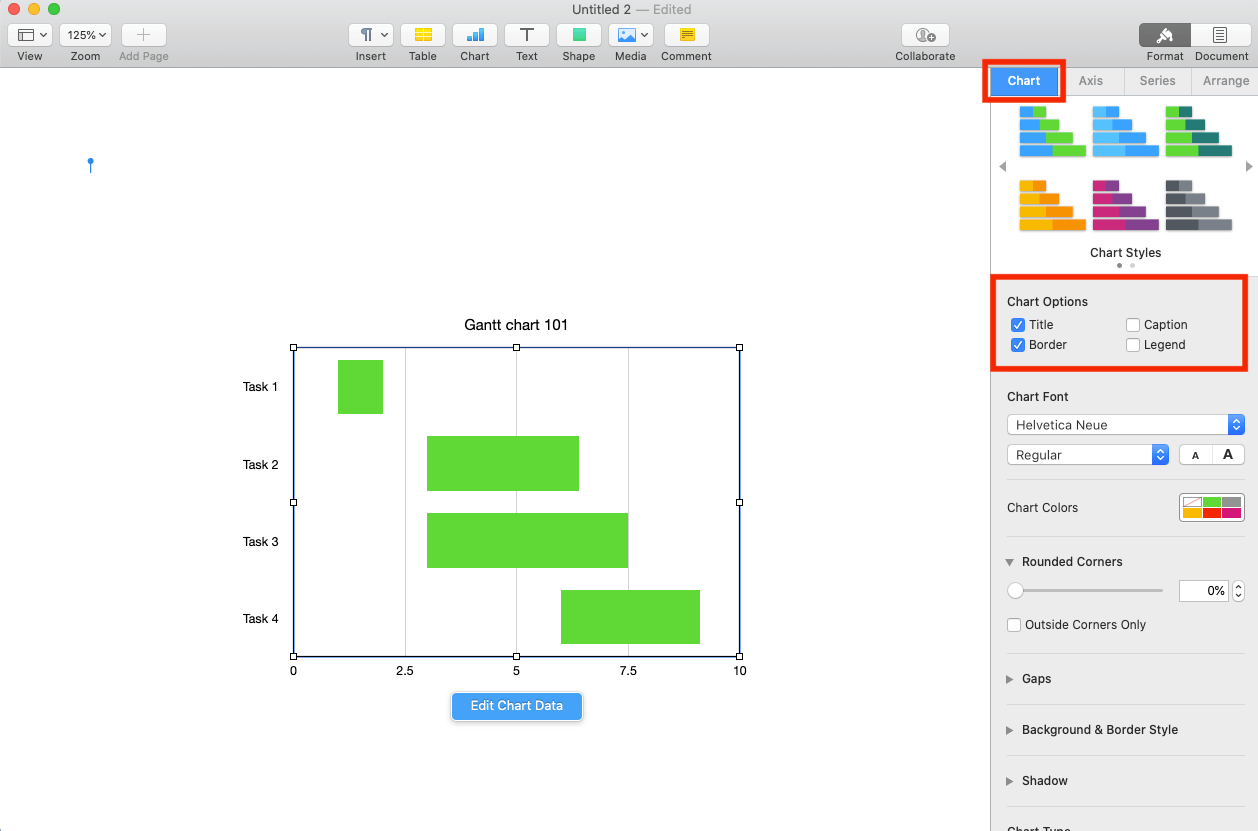

Remove the Chart Legend

  1. Click and highlight the entire chart.
  2. Remove the legend.
    Click theCharttab in the Format menu. Uncheck theLegend盒子。
    Edit Chart Legend

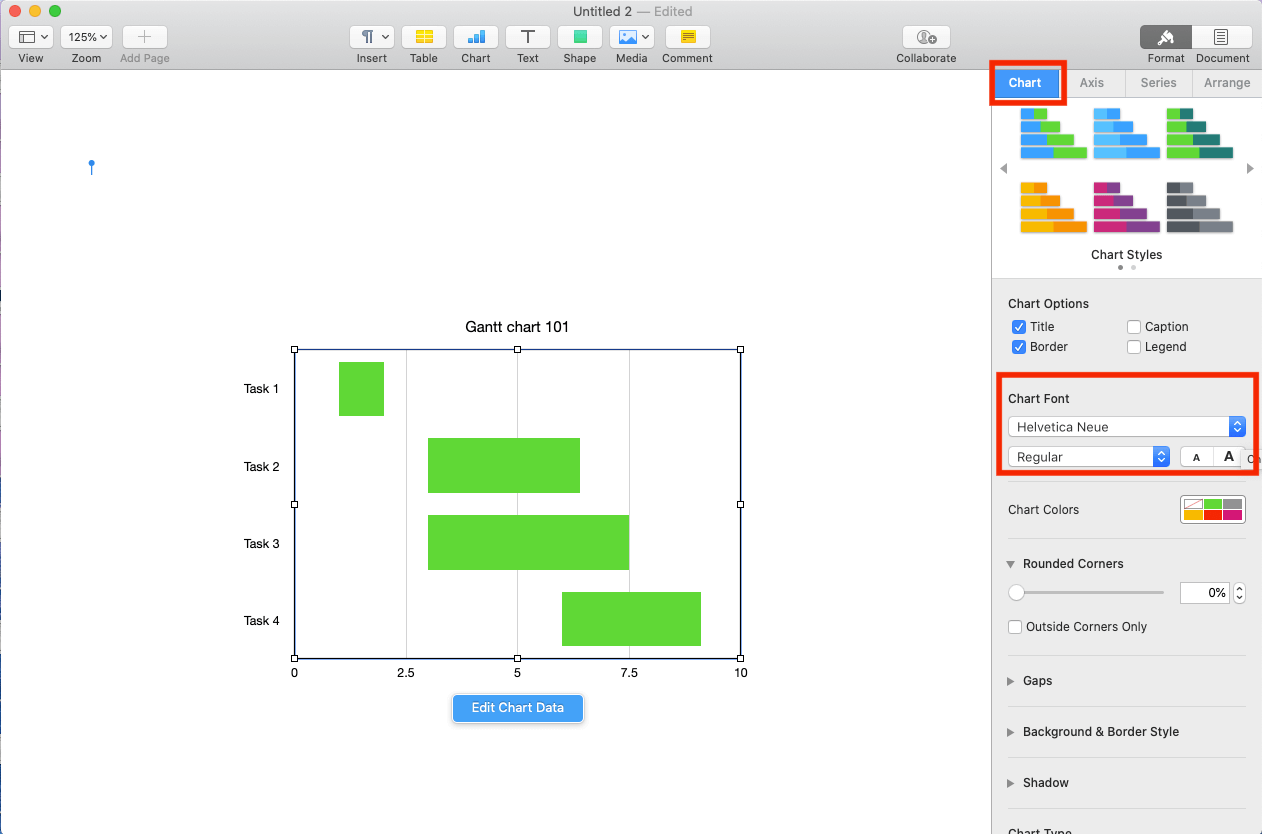

Customize the Font of a Gantt Chart

  1. Click and highlight the entire chart.
  2. Customize the font and font size.
    Click theCharttab in the Format menu. Navigate to theChart Fontsection and select your preferred font and font size.
    customize Chart Font

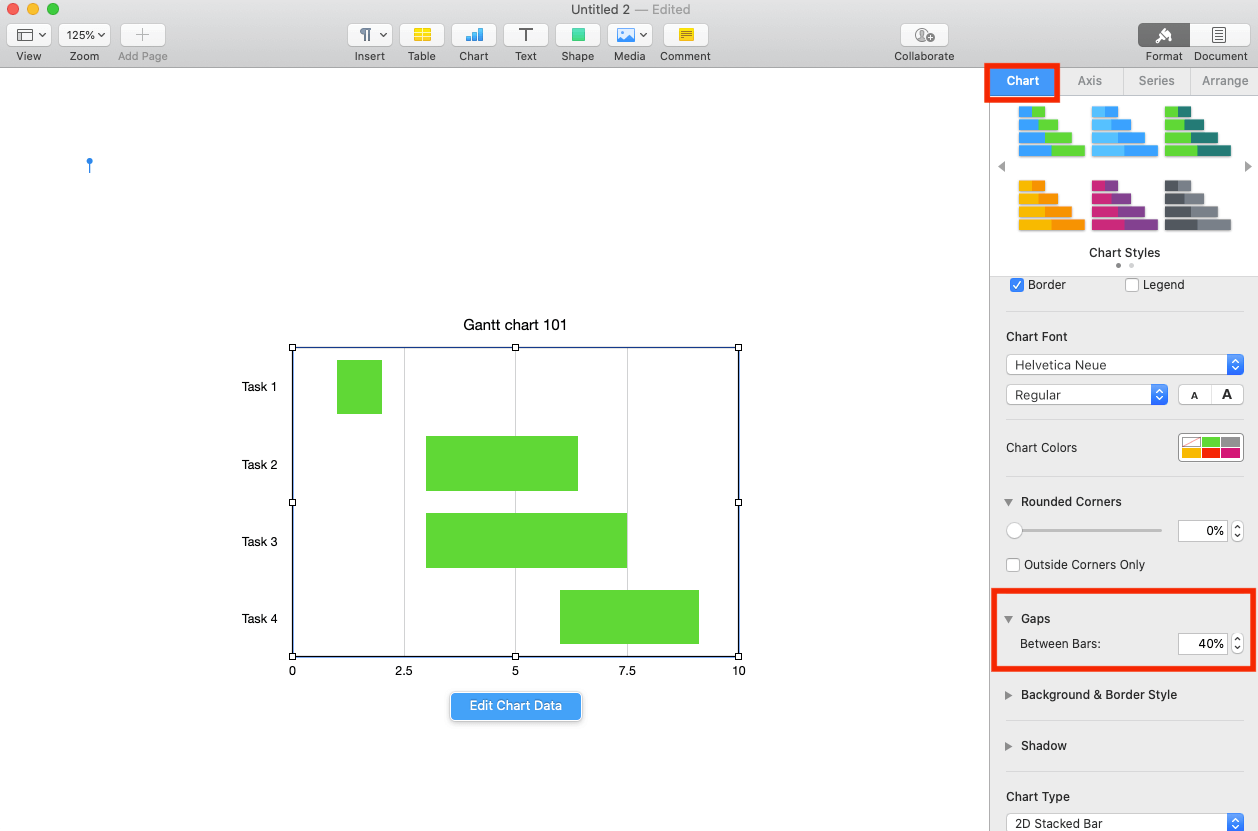

Adjust Task Bar Spacing

  1. Click and highlight the entire chart.
  2. Modify the gaps between bars.
    Click theGapsection of theChart Optionssection, and increase or decrease theBetween Barspercentage number.
    Customize Chart Spacing

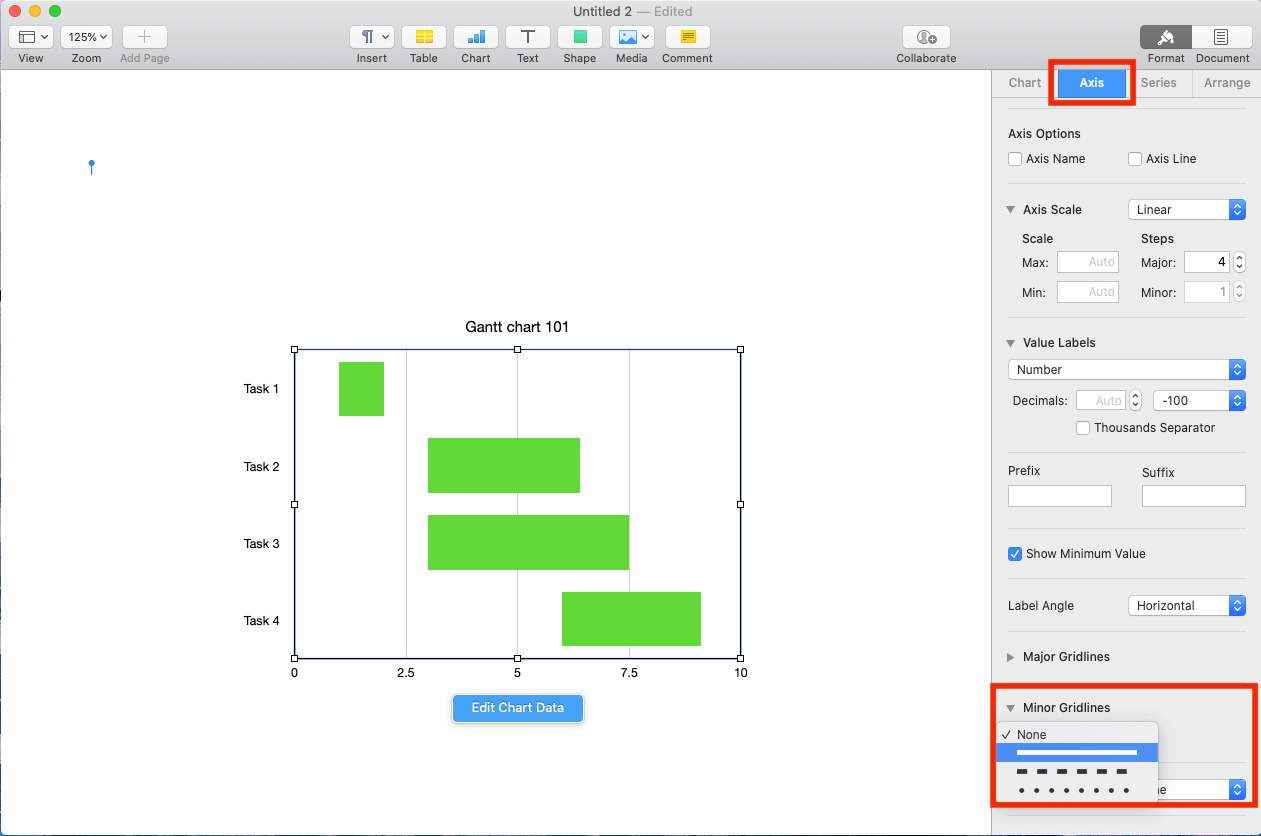

Add Vertical Lines to a Gantt Chart

  1. Click and highlight the entire chart.
  2. Select vertical line preferences.
    Click theAxistab in the Format menu. Navigate to theMinor Gridlinessection, and click the type of lines to display vertically on the chart.
    Pro Tip:You can use the additional options in the section to customize the color and width of the lines.
    Customize Gridlines

Looking for additional instructions on how to create a Gantt chart on Mac Numbers, another Apple product? Visit this article for step-by-step instructions on how to create your Gantt chart in Mac Numbers.

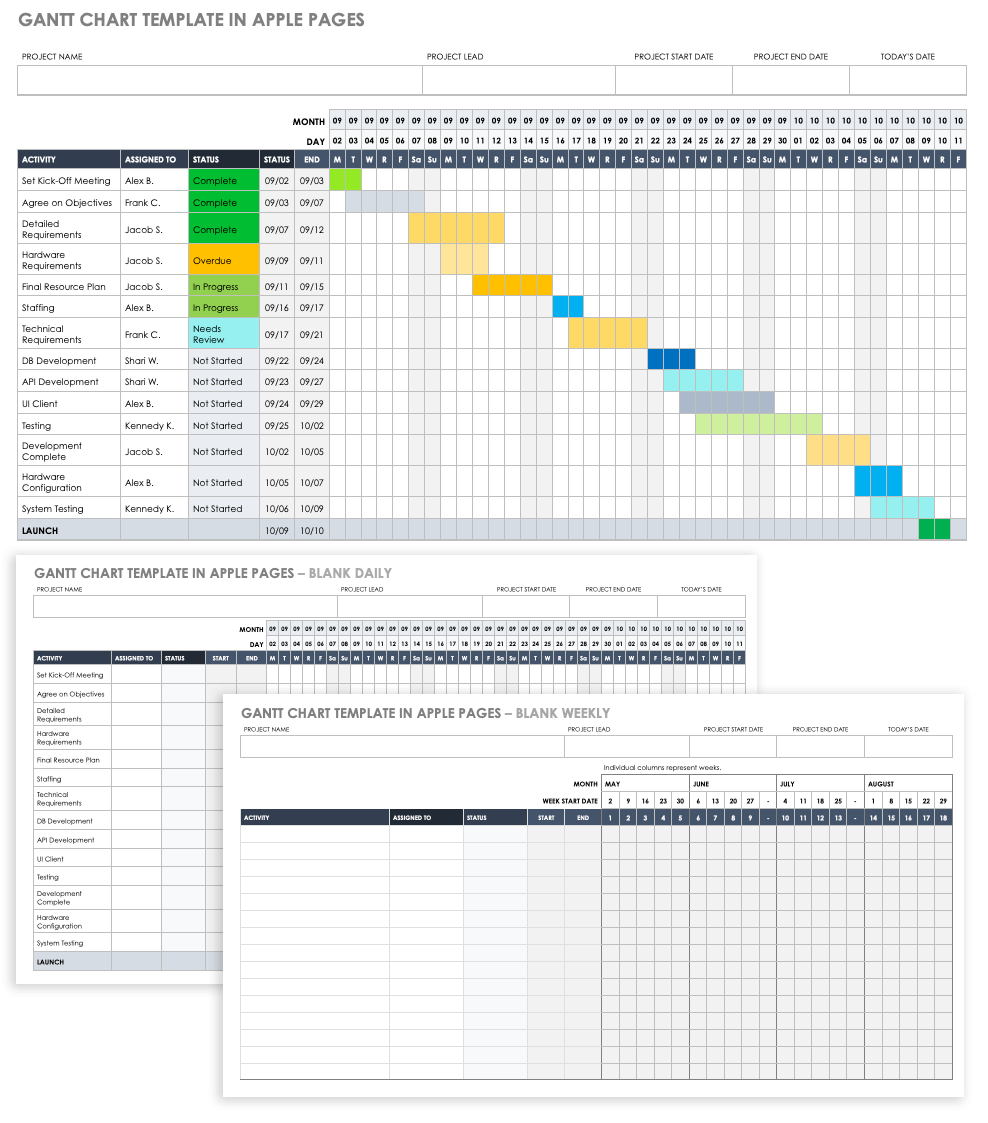

Gantt Chart Apple Pages Template

Gantt Chart Template in Apple Pages

Download Gantt Chart Template in Apple Pages

If you’re looking to use a premade Apple Pages Gantt chart template, download this free version. As with any other Gantt chart, use it to track all project tasks and deliverables on a predetermined timeline.

For additional Gantt chart templates in a variety of formats, visitour article with the largest offering of Gantt-specific templates.
