How to Access a Function in Excel Using the Function Wizard
In an Excel spreadsheet, formulas are helpful because they calculate mathematical, logical, and statistical actions, and you can add these formulas in your spreadsheet to automate data generation. Excel has functions that are preset formulas, or you can enter your own. The Excel function wizard is a special feature in Excel that provides a shortcut to writing formulas. All the possible Excel formulas are in the function wizard, but not the combination of formulas.
VLOOKUP is one of the logical functions in Excel, part of the lookup and reference functions for a database. A column in Excel is the vertical cells designated by a letter, while a row in Excel is the horizontal cells represented by a number, and a database is simply a list of data.
Follow these steps to use one of the preset formulas in Excel.
- Click theFormulastab.
- Click theFunction(orInsert Function) icon on the far-left corner of the ribbon. Click on the formula you want to use (in our example, we’re choosingSUM), and click theOKbutton.
- To add your own function, click on the designated cell and manually enter the formula.
Some of the functions are basic, while others are more intricate. Examples of simple functions include those for basic arithmetic, such as the following:
Arithmetic Purpose |
Excel Function |
Adding |
SUM OR + |
Averaging |
AVERAGE |
Returning the smallest value in a range |
MIN |
Returning the highest number in a range |
MAX |
Counting the cells with numbers |
COUNT |
Counting the number of cells that are not blank in a range |
COUNTA |
找到square root of a number |
SQRT |
*Subtracting |
- |
Multiplying |
PRODUCT OR * |
*Dividing |
/ |
*Both of these functions use operators, since there are not discrete functions for Excel.
More complicated functions can include nesting multiple formulas that give your sheet very specific utility. For example, you can nest SUMIFS and COUNTIFS formulas to evaluate your banking data and return the amount of money that your bank owes you. Once you master these functions, you can get very creative with Excel formulas when solving for the results you need.
What Is a VLOOKUP Used For?
Use VLOOKUP to find items within a table or a range of columns based on their row. The name VLOOKUP refers to looking something up vertically – a value in your table – by matching on the first column. In other words, you are telling Excel a value you do know, and asking it to return a value that is related because it is in the same row but in a different column.
For example, you have a database of information about your staff. Each row lists a different staff member and lists data about them as it goes across. Column A is their name, column B is their employee ID number, column C is their desk phone number, and column D is the department. Finding Bob Smith’s phone number is not daunting when there are only 50 employees. You could easily do this visually. However, when you have 50,000 employees, it’s a bit more challenging. However, with VLOOKUP, you only need one piece of data, such as an ID number, to locate the rest of the employee information.
VLOOKUP often appears on resumes of people who interview for positions that require Excel skills. The VLOOKUP function comes standard in all modern Excel versions, from the 1997 version to the most current 2016 version.

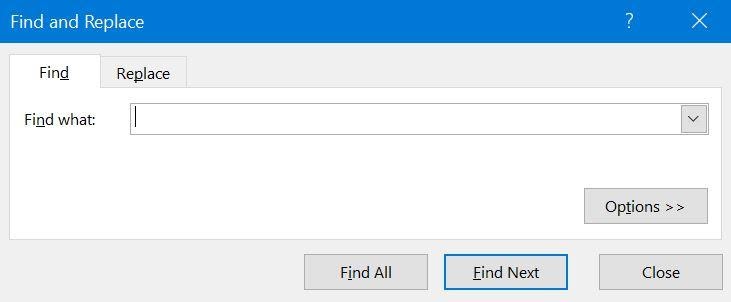

Normally when you search for a piece of data in a large spreadsheet, you press theCtrl + Fkeys (a shortcut to open theFind and Replacebox) on your keyboard. When theFind and Replacebox appears on your screen, type in the item you are looking for in theFind what: field. Excel takes you to any exact matches in the spreadsheet.
You could then sort the spreadsheet to view the data you searched for. However, there may be many exact matches, so it could take a while.
The advantage of VLOOKUP is that it surfaces the data you are describing, not just the piece you know, and it performs this task without needing to sort the spreadsheet. You can also set VLOOKUP to run hundreds or thousands of matches at once, which saves you time rather than manually executing the task using theCtrl + Ffunction.
Additionally, you can add VLOOKUP in your more complicated formulas to present answers, not just pieces of data. For example, imagine you are ready to hand out bonuses to your sales team. There may be some new people that you are not yet ready to include, and you need a bottom line figure to present to your board for approval. The database tells you their current annual sales, annual salary, and how long they have been with the company. Using VLOOKUP with a few other relatively simple functions can surface the bottom line figure in a quick, easy formula.
What Is the Main Function of VLOOKUP?
Just as the name implies, the main use of the VLOOKUP function in Excel is to look things up, as listed vertically, whether you are looking for an exact match or an approximate match. You can also use the function on a data table with odd or non-intuitive codes in it. In Excel, you can add a new column that defines the codes and your VLOOKUP can fill in the data. Once you learn the basics, VLOOKUP is a simple function that is relatively easy to use. For example, the attached file lists salary information for 54 employees and can be used to follow along with the explanation below.
What Is the Formula for VLOOKUP in Excel?
Let’s look at the composition of the VLOOKUP function. There are only four arguments in a VLOOKUP function – three are mandatory and one is optional. These arguments comprise the syntax of VLOOKUP.
In Excel, syntax means how you lay out your data, the order of your arguments, and how you write them. There are two ways to enter formulas in Excel. You can either enter them into a cell manually, or use the function wizard (shown above). Some experts disagree about whether the function wizard is the best avenue for inputting formulas. Whichever way you decide to input formulas is up to your comfort and experience level.
You can find the fields highlighted below by navigating to the function wizard and choosing VLOOKUP from the list of functions. Here are the the four arguments in VLOOKUP:
Lookup Value:In the function wizard, this is the “What?” that you are trying to answer. This argument is mandatory.

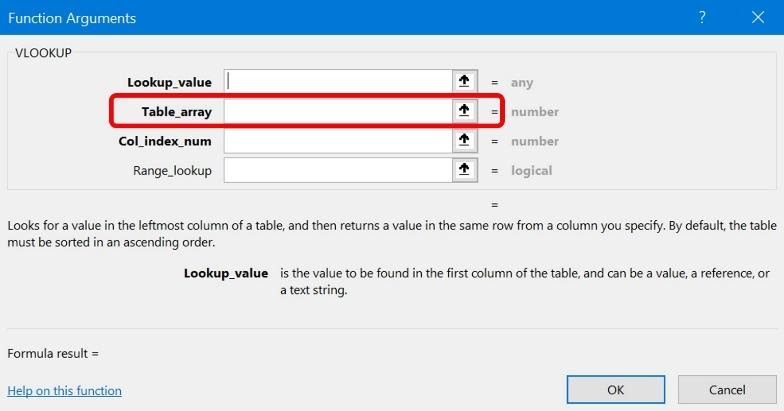

Range:In the function wizard, theTable_arrayis where you will pull data from to answer your inquiry. This argument is mandatory.

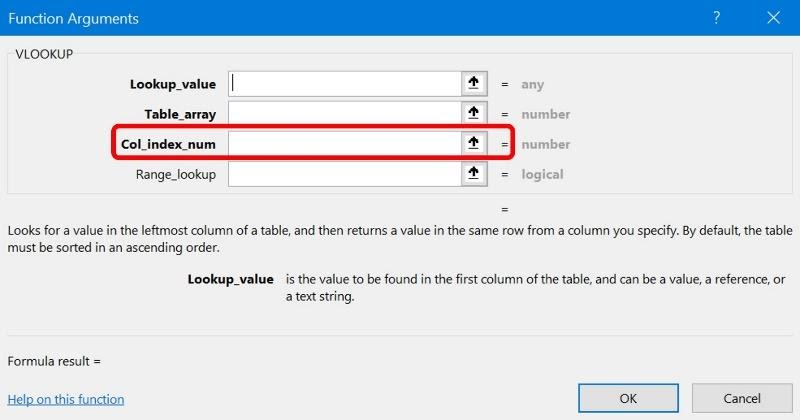

Column Number:TheCol_index_numin the function wizard tells Excel which column to pull the return data from. This is the third mandatory argument for VLOOKUP.
True or False:This argument appears asRange_lookup in the function wizard. This is the last available argument, and is optional. Note: If you do not complete this box, the default is TRUE (or 1).
Putting the formula together,
VLOOKUP = (lookup_array, table_array, col_index_num, range_lookup)
How to Perform an Exact Match VLOOKUP in Excel
Follow these steps to perform an Exact Match VLOOKUP in Excel.
- Download the file Sample File for VLOOKUP Exercise.xls here.

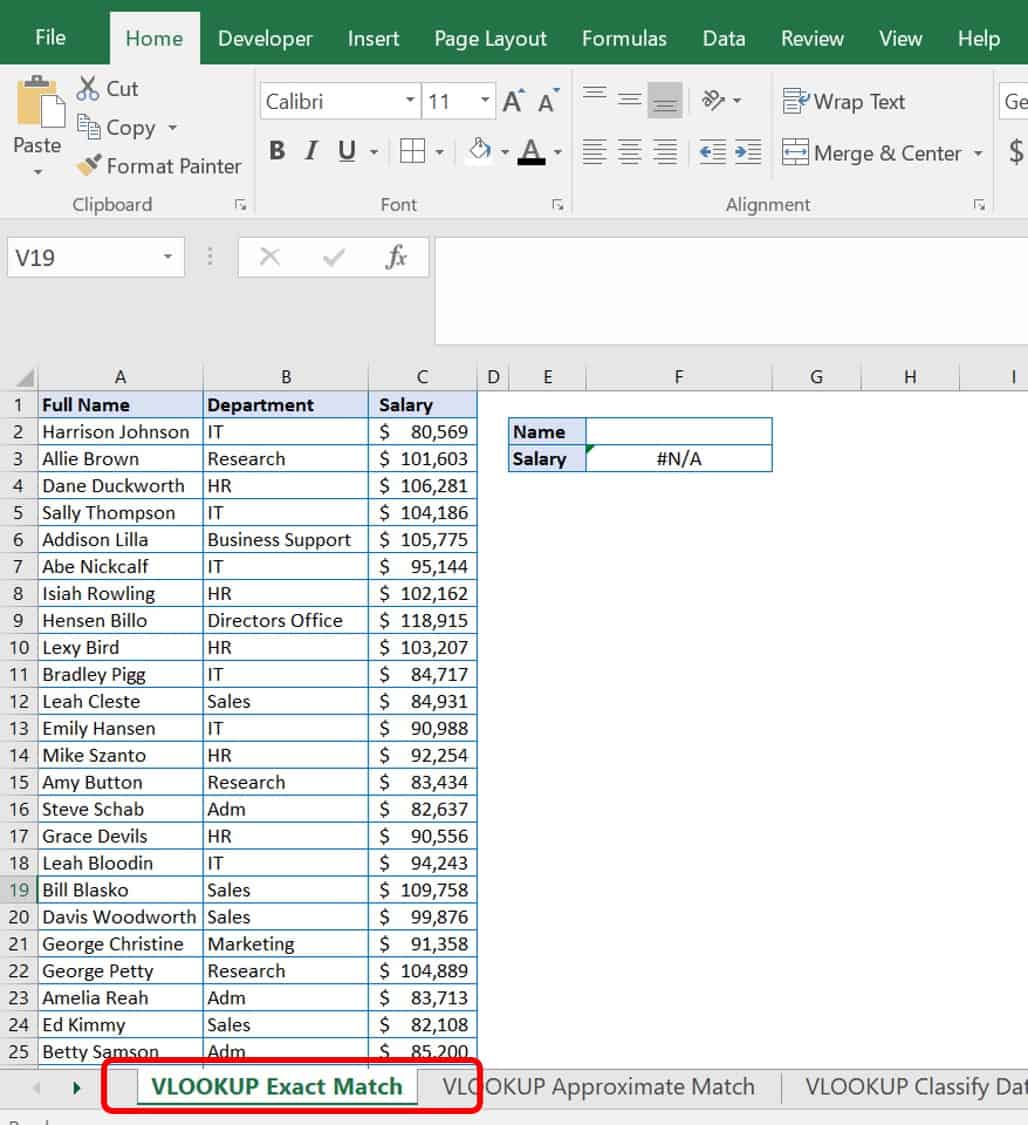

- Click theVLOOKUP Exact Matchworksheet tab.
The tab includes a list of employees and their exact salaries. Although it’s not impossible to scroll and find the name and commensurate salary, a VLOOKUP formula is a quicker alternative. The function provides a quick, specific tool for each time you want to look up a salary, and is especially useful if you had thousands of employees in this list. - On the worksheet you’ll find a table that includes Name and Salary cells in column E. Type the full name of the employee,Leah Cleste, in theNamecell in column F, and the formula automatically fills in her corresponding salary below.

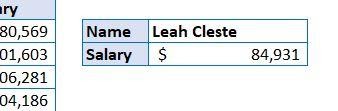

Since an exact match has been defined in the formula, you must fill in the name exactly as it is listed in the Full Name column (column A), without any misspellings. Otherwise, you will receive a #N/A error message shown below.
How to Perform an Approximate Match VLOOKUP in Excel
Follow these steps to perform an Approximate Match VLOOKUP in Excel.

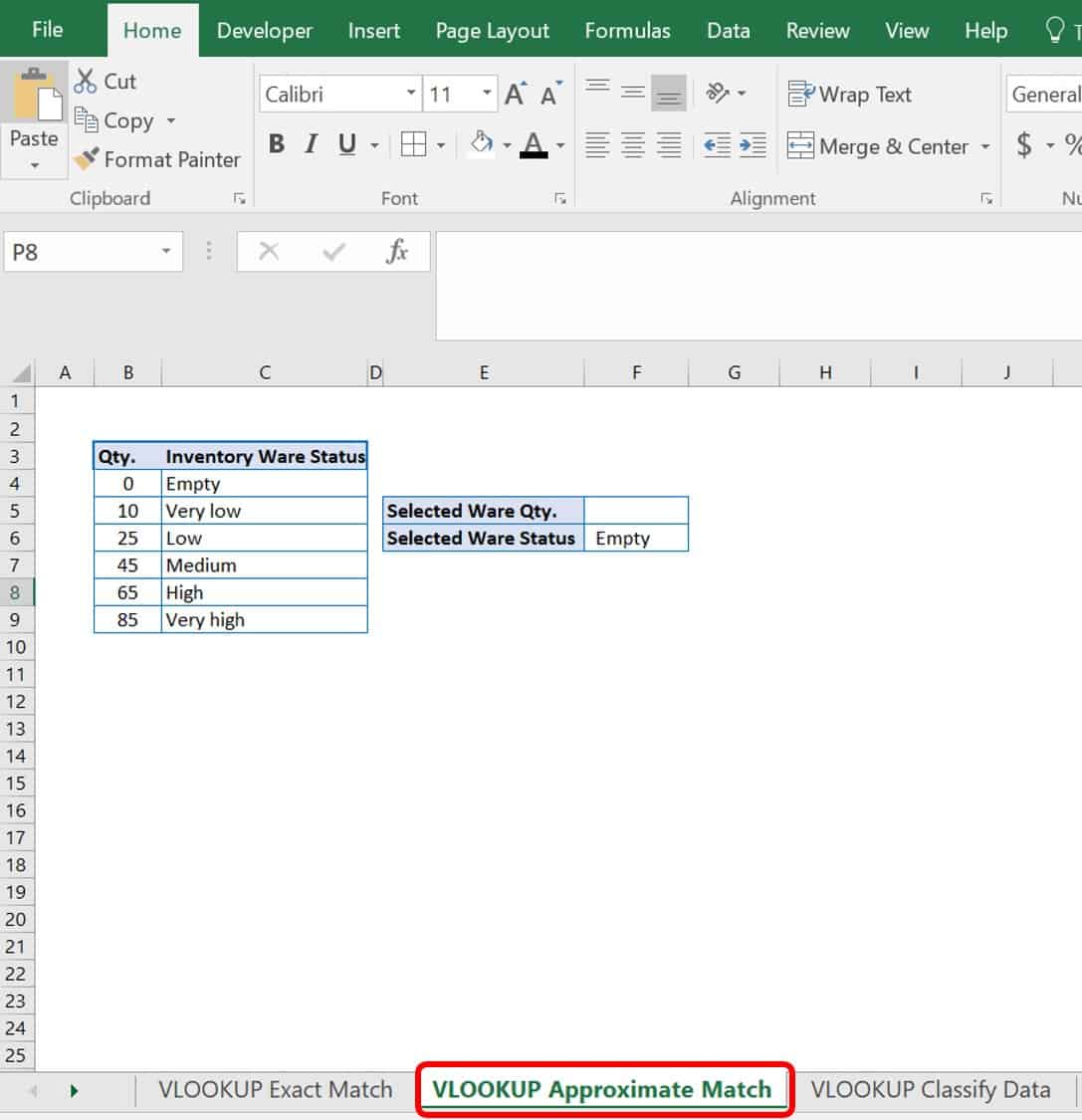

1. Open the fileSample File for VLOOKUP Exercise.xlsand click theVLOOKUP Approximate Matchworksheet tab.
Try an approximate match instead of an exact match by inputting a value close to your lookup value such as one inside a numerical interval. This does not work well when your known value is text. In this example, you are looking for the ware status of your inventory. If you used an exact match VLOOKUP, you would only have a ware status when quantities were 0, 10, 25, 45, 65, and 85. However, because the formula dictates an approximate match, your categories are:
- 0-5 Empty
- 10-24 Very low
- 25-44 Low
- 45-64 Medium
- 65-84 High
- ≥85 Very high
2. In this example, type the numerical value36in theSelected Ware Qty.cell in column F. The Selected Ware Status returned is Low. You should not receive any type of error message, regardless of the value you choose to insert. VLOOKUP provides the closest value to the category, without going into the next category.
An approximate match is the default functionality of VLOOKUP, and is used when you have a formula that does not specifically define either exact or approximate, which can happen when you don’t define the fourth argument in the formula.
What Are Other Functions of VLOOKUP?
Now that you’ve learned that VLOOKUP can find values in lists or tables, let’s look at other uses of VLOOKUP. Two alternative uses are data classification based on categories and joining data tables from separate sources based on a common data piece.
How to Classify Data Using VLOOKUP
Follow these steps to classify your own data using VLOOKUP
- Open the fileSample File for VLOOKUP Exercise.xls.

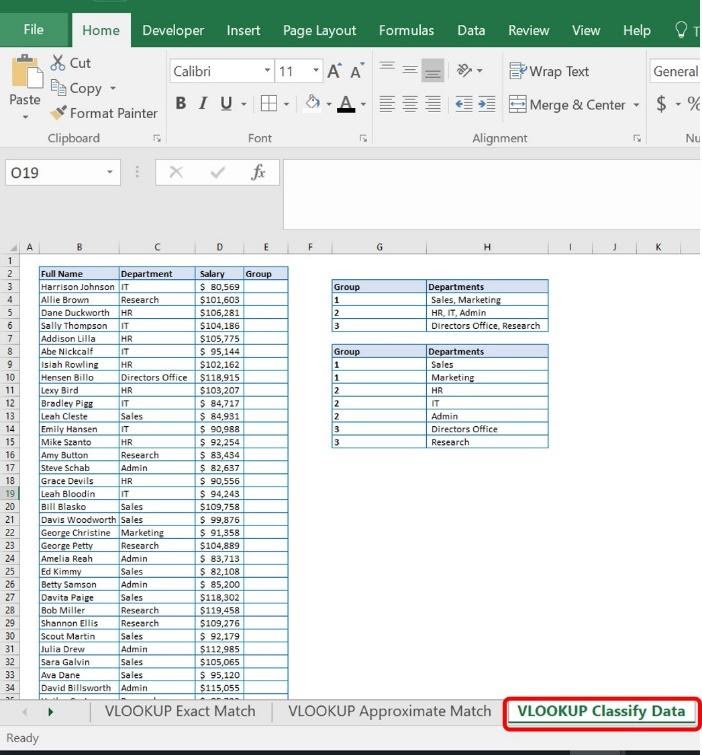

- Click theVLOOKUP Classify Dataworksheet tab.
This is the same file of employees from above, but includes aGroupcolumn. In this example, you need to delineate your employees based on their group. Instead of using a complicatedNested Ifstatement, you can use VLOOKUP to easily assign each employee a group.

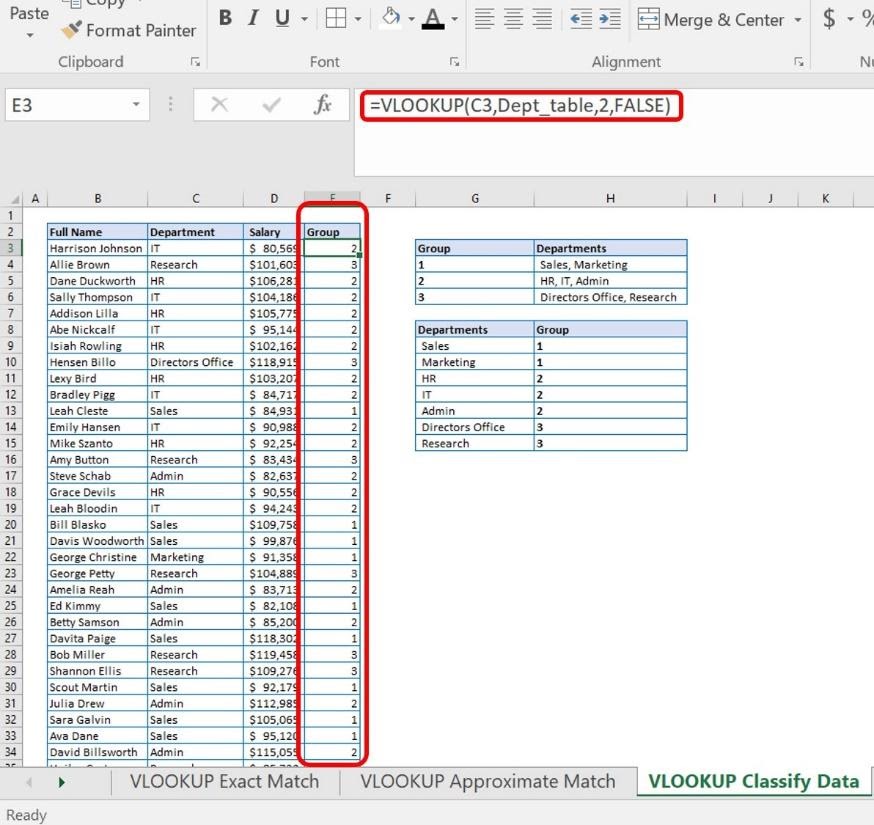

With a VLOOKUP formula added into column E (Group), you can assign each employee a group number based on theDepartmenttables added in column H.
How to Join Data from Separate Sources
Follow these steps to join separate data tables into a single table using VLOOKUP.
1. Open the fileSample File for VLOOKUP Exercise.xls.

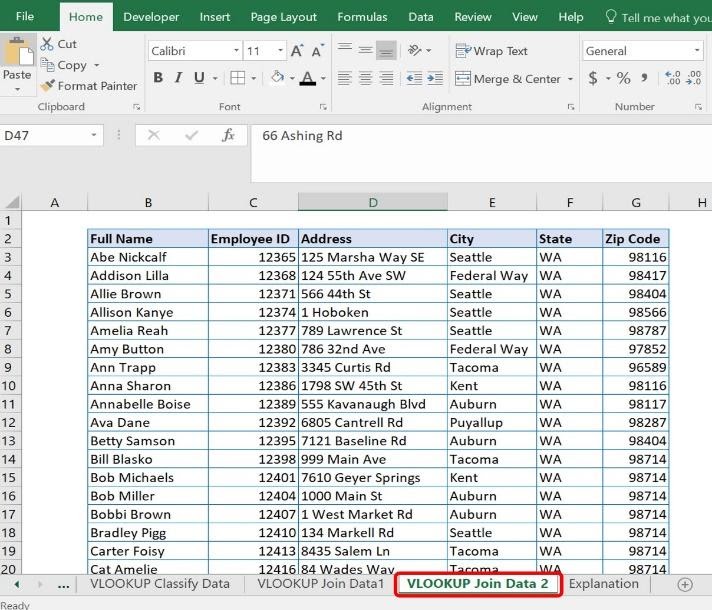

2.For this exercise, you’ll use two data worksheets. ViewVLOOKUP Join Data 1andVLOOKUP Join Data 2.
In this sample data,Full Nameis in column B on both worksheets. This is the leftmost column of data in the data table. However, theVLOOKUP Join Data 1sheet has different data for each employee than theVLOOKUP Join Data 2 sheet. The first worksheet has salary and department data, whereas the second worksheet lists their employee ID and personal address information. Since the two sheets have a common data piece (Full Name), you can use VLOOKUP to join them together quickly without performing complicated sorting and pasting.Full Nameis the value that you are using to anchor your table.
3.Use theVLOOKUP Join Data 1worksheet and add the columns fromVLOOKUP Join Data 2worksheet you want to see. In this case, add columns for Employee ID, Address, City, State, and Zip Code.

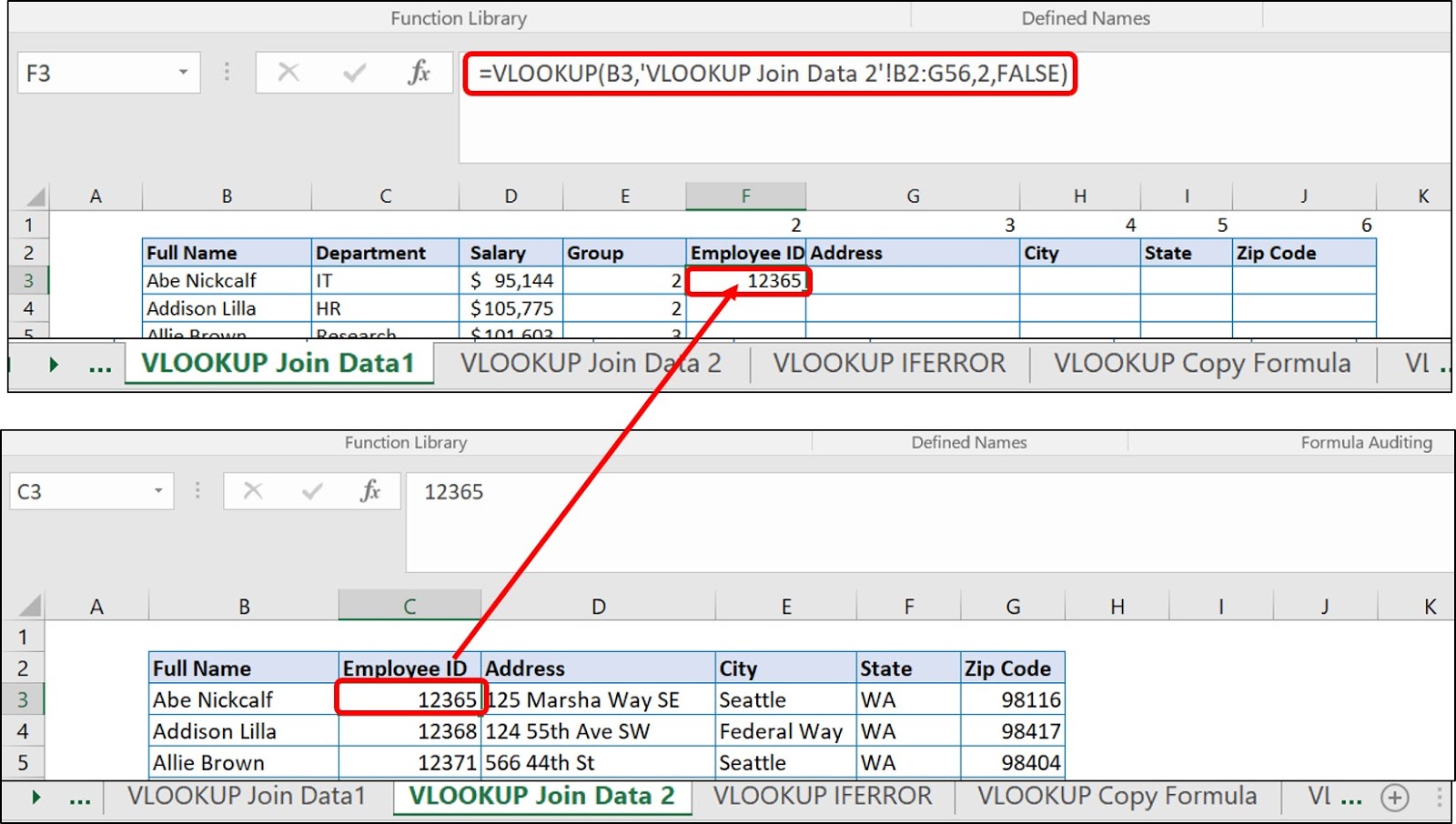

4. Add the first VLOOKUP formula in cell F3 for Employee ID. Add the following formula: =VLOOKUP(B3,'VLOOKUP Join Data 2'!B2:G56,2,FALSE).
The arguments are as follows:
Formula value |
Argument |
Argument Meaning |
B3 |
lookup_value |
The reference data that Excel is looking for in the second table. |
'VLOOKUP Join Data 2'!B2:G56 |
table_array |
The location of the second data table Excel is looking at. |
2 |
col_index_num |
The column number in relation to the reference data column. |
FALSE |
[range_lookup] |
Whether the data sought is an exact or approximate match. |
As you can see, the Employee ID fromVLOOKUP Join Data 1matches the Employee ID fromVLOOKUP Join Data 2.

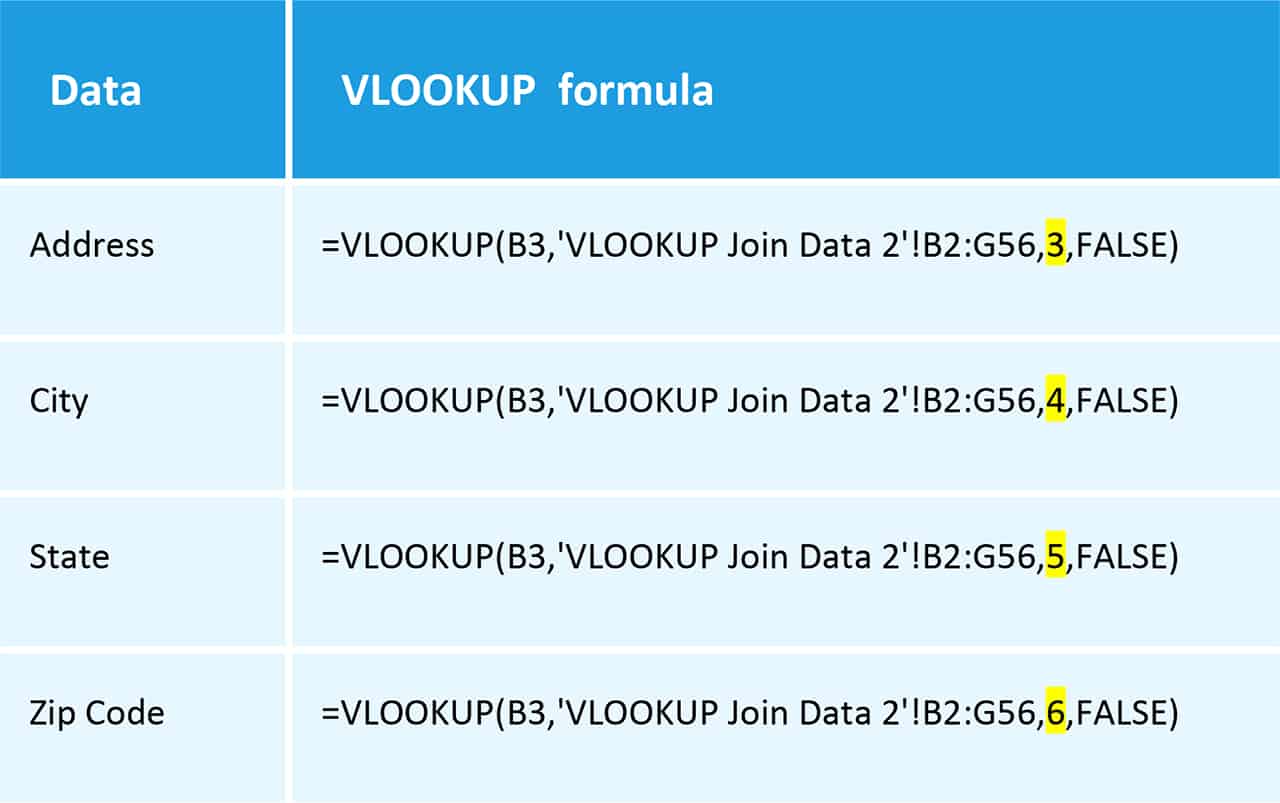

5. Add the VLOOKUP formulas for cells G3, H3, I3, and J3. These are the cells for Address, City, State, and Zip Code. The only change in the formula for their VLOOKUP is the column location number, as follows:

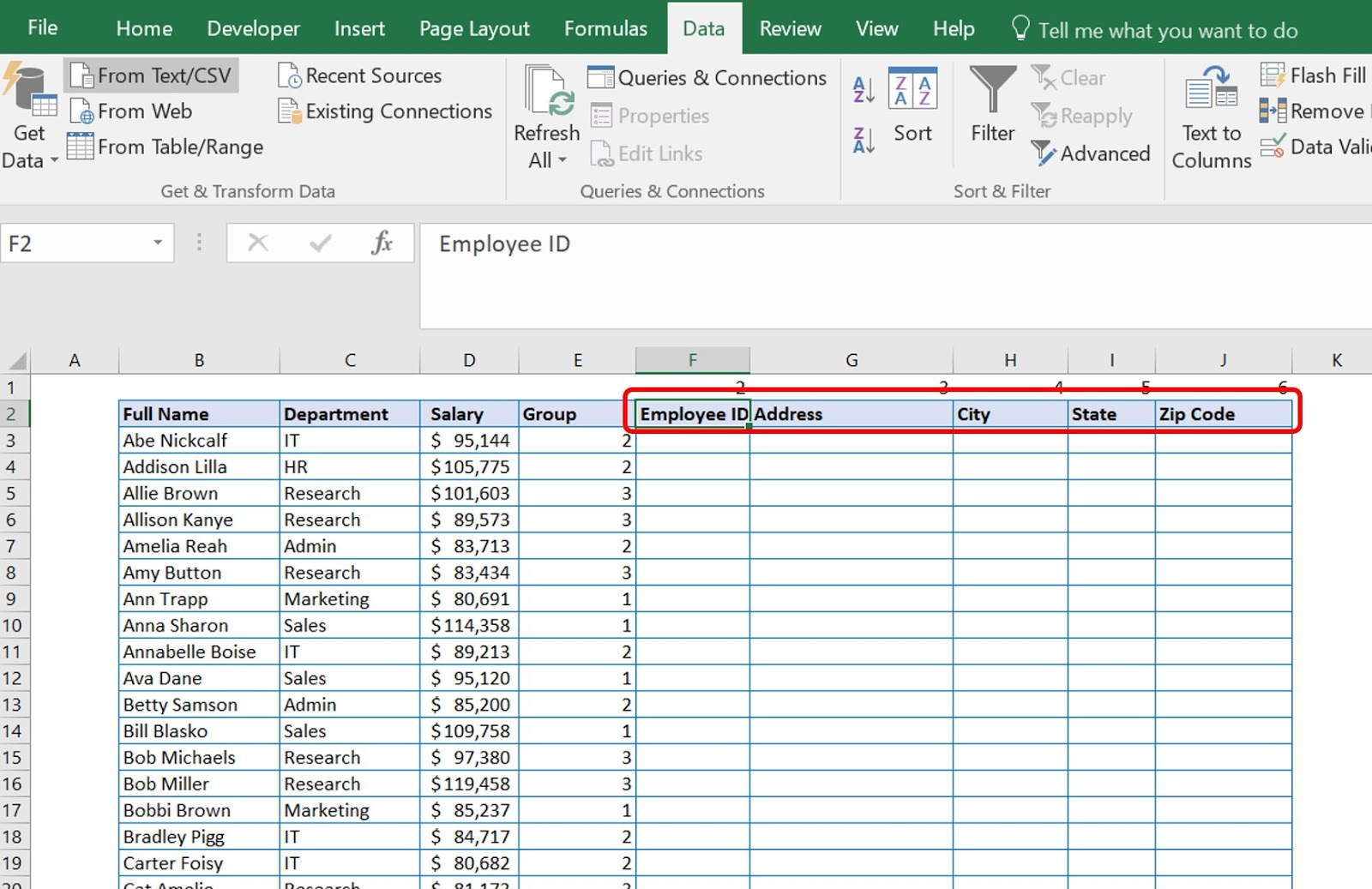

The numbers in the red box below represent the column location on theVLOOKUP Join Data 2再保险lative to the reference column, and match the change in the formula. They are merely a reminder for you as you type in your formulas.
6. Copy the five formulas you just typed across the row, cells F3, G3, H3, I3, and J3. Paste the formulas down through the rest of the table.
With a VLOOKUP formula added in to columns F through J, you have taken the data from VLOOKUP Join Data 2 and added it to VLOOKUP Join Data 1 to create one big table.
How to Conduct a VLOOKUP
Before you start putting a formula together, look at the setup of your workbook. Some forethought can save you time and headache. Workbooks can get messy and lose utility when you place calculations haphazardly.
In the example below the authors have separated the data table and the VLOOKUP. There are defined borders that help you visually tell the difference between your data table and your VLOOKUP query. Decide how you want your query and your data tables to be visually delineated and set up your worksheet accordingly.
How to Enter the VLOOKUP Formula
Follow these steps to enter your own VLOOKUP formula using the syntax above.
1. Click the cell where you will type your formula. For this example, you will use the sameVLOOKUP Exact Matchworksheet used earlier to match the salary for your named employee. Therefore, you will put the VLOOKUP formula in the cell where you want to see your retrieved information. Click on that cell.
2. Type=VLOOKUP(to signal to Excel that you are creating a VLOOKUP formula. Excel will open a tool tip box to help you keep track of the arguments while writing the formula. The bolded portion is the required argument you need to enter. Between each argument, type acomma(,) with no spaces.
3.Type in thelookup_value. For this example, the lookup value is cellF2, which represents the value in the database that you know – theFull Nameof the employee.
The dollar signs ($) before the F and before the 2 stand for an absolute or anchored value. Normally, when you copy and paste cells with formulas in them, Excel shifts the formula relative to the new position.
For example, if you have a simple formula such as=A1located in cellB1(as in the diagram below) without the dollar signs, and you copy/paste the cells down the column, the value inB2becomesA2, B3isA3, and so on. When you include the dollar signs in the formula (as shown in the second diagram) the value of all the pasted cells pasted is the same as what’s in cellB1. In other words, when you put a dollar sign before the column letter, you are telling the formula to stay with the original column location. When you put the dollar sign before the row number, you are telling the formula to stay with the original row number. This can be helpful as you use more complicated formulas and forms.
4. Next, type in the range – thetable_array. This tells Excel where you are looking for data. For this example, this is the data table fromA1:C55. You can either type the parameters of the table into the formula or select and highlight the whole table to have Excel load it into the equation.
5. The next argument concerns which vertical column you want Excel to look in that correlates with the value in the location you identified. This is yourcol_index_num, and in this example, should be 3 to represent how many columns from column 1 (the leftmost column on the sheet). In other words, you are telling Excel to first look at the value inF2, and then find that value within the table located fromA1:C55. Excel should move three columns over and return the value located in that cell. So far, the VLOOKUP formula looks like this:
6. Decide whether the data needs to be exact or approximate. As discussed above, the vast majority of scenarios will require exact answers. It would be inappropriate to look for George Christine’s salary and have George Petty’s salary populate. This is the fourth argument[range lookup]in this formula. The default is TRUE for this, which is an approximate match. You may also enter 1 for an approximate match. FALSE is an exact match. You may also enter 0. As you can see in the image below, Excel tries to help you type the right formula and provides a pop-up box as you start typing that reminds you of the difference between these values.
Now, you can check your formula. Input correctly, you should see the correct salary when the employee name cell is updated. For example, Harrison Johnson should have a salary that populates as $80,569. If Harrison’s salary comes up as $95,144, then you have not chosen the correct range lookup value.
How to Do VLOOKUP In Excel 2010
You will find a step-by-step guide to performing a VLOOKUP for Excel 2010here.
How to Do VLOOKUP In Excel 2013
You will find a step-by-step guide to performing a VLOOKUP for Excel 2013here.
How to Do VLOOKUP in Excel 2016
You will find a step-by-step guide to performing a VLOOKUP for Excel 2016here.

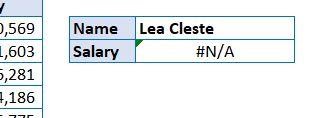

Why Is the VLOOKUP Returning #N/A?
VLOOKUP is one of the most common functions to return #N/A errors in Excel when set up improperly. VLOOKUP returns an #N/A error when it cannot find a referenced value.
Since approximate matches are considerably less prone to return #N/A errors, the first assumption is that you are using VLOOKUP to return an exact match. There are several reasons your VLOOKUP can return an #N/A error, including:
Problem |
Fix |
A typo or misprint in the lookup value. |
Check your spelling. |
The lookup value simply does not exist in the data table. |
There is no fix if the data does not exist. |
Either the lookup data or the table data is stored in the wrong format in the cell. For example, if you are looking for a number and it is stored as text. |
右键单击on both thelookup valueand thetable data. Click onFormat Cells. Click theNumbertab. Check the format to ensure that the cells are formatted the same. |
Both the lookup and the table data are stored as text, and one has either leading or trailing spaces. |
Select the cells that contain numbers stored as text. Click theDatatab. Click文本列. ClickFinish. Another choice for leading spaces is to use theTRIMfunction. For trailing spaces, use aVLOOKUPwith wildcards (see VLOOKUP Example with Wildcards below). |
The lookup value is not in the first column in thetable_arrayargument. |
Reorder your columns, if possible. Otherwise, consider usingINDEX-MATCHinstead ofVLOOKUP. |
If you are using a formula with an approximate match:
Problem |
Fix |
If the lookup value is smaller than the smallest value in thetable_array. |
Change your lowest value in your table array. |
If thetable_arrayis not sorted in ascending order. |
Sort thetable arrayin ascending order. |
Many people do not like displaying #N/A errors, especially when designing template forms. If you receive an #N/A error in an exact match VLOOKUP, you can have your VLOOKUP display a another message or a blank cell. This is called “trapping” an error. The easiest way to trap this error and display something friendlier than a #N/A error, such as “Not found” or even “0”, is to wrap your formula with anIFERRORformula.
How to Enter an IFERROR Formula
Follow these steps to wrap your VLOOKUP with an IFERROR formula.
- Open the fileSample File for VLOOKUP Exercise.xlsand click theVLOOKUP IFERRORworksheet tab.
- Add parentheses around theoriginal VLOOKUP formula, and typeIFERRORafter the equal sign (=). After the VLOOKUP formula, add a comma (,), and then in quotes (“ “) add your friendly message. If you would like nothing to show in the cell, enter quotes (“”) only. In the example here, we added “Not found” to appear when an employee name is not in the table.
The original VLOOKUP formula was =VLOOKUP($F$2,A1:C55,3,FALSE). With IFERROR wrapped around it, the formula is now =IFERROR(VLOOKUP($F$2,A1:C55,3,FALSE),”Not Found”).
How to Copy a VLOOKUP Formula
而不是输入一个新的VLOOKUP公式夏娃ry row in a table, you can simply copy the original VLOOKUP formula. In this case, you must use absolute cell references ($), as discussed earlier, for the data pieces that you do not wish to change in the formula.
Follow these steps to copy your VLOOKUP formula.
- Open the fileSample File for VLOOKUP Exercise.xlsand click theVLOOKUP Copy Formulaworksheet tab.
- In this example, copy theVLOOKUP formulalocated in cell F3 into the rest of the column to populate all the correct IDs. However, first check that theVLOOKUP formulahas absolute values in place. In this case, you want to make sure that you can copy your formula and paste it down theID column.
- The VLOOKUP formula used to populate your staff’s ID numbers comes from the data in theVLOOOKUP Copy Formulaworksheet and from theVLOOKUP Join Data 2 worksheet.
- Review theVLOOKUP formulafor the first staff member in the table, Harrison Johnson. The formula should be:
=VLOOKUP(B3,’VLOOKUP Join Data 2’!B2:G56,2,FALSE)

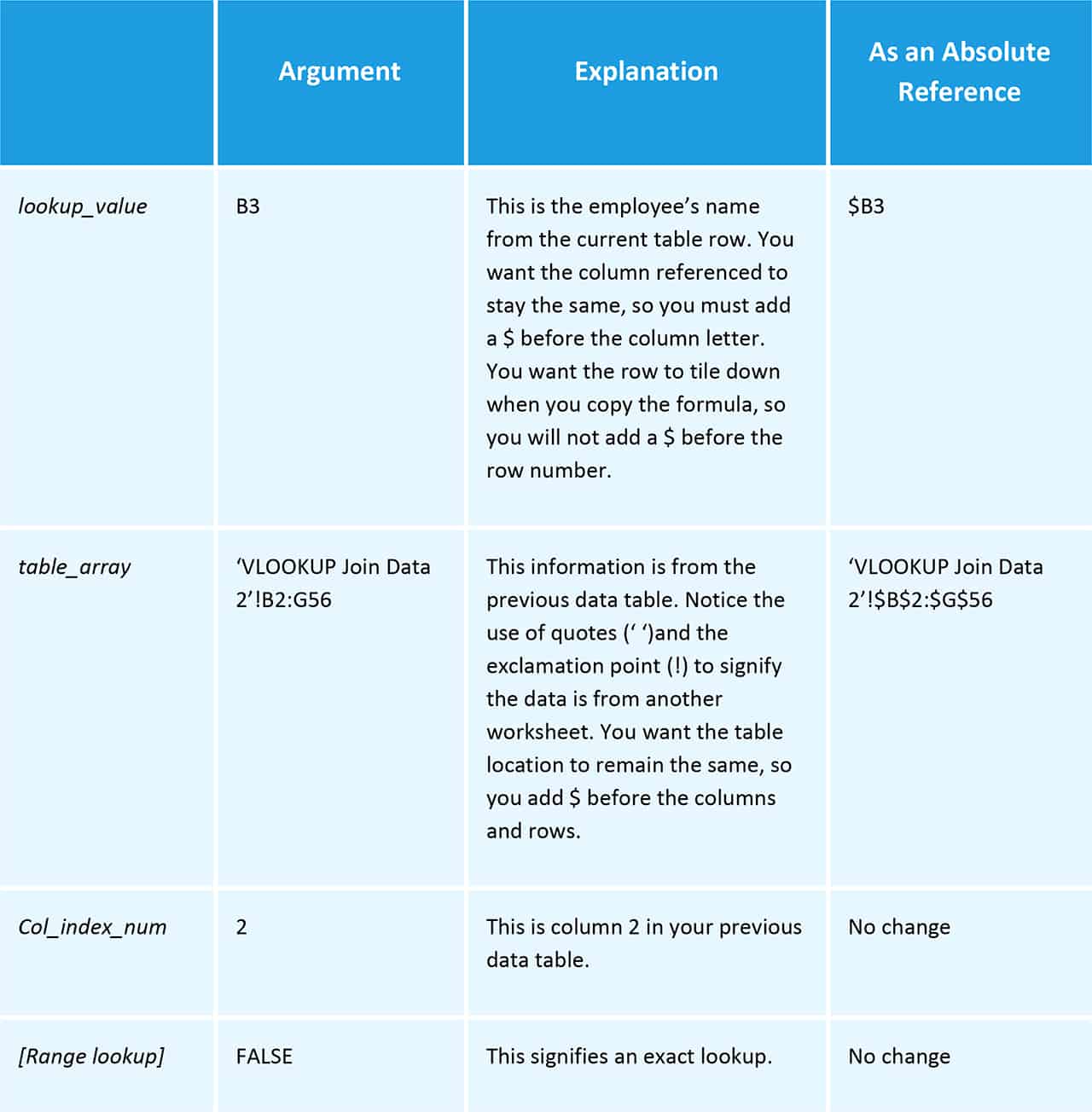

where the arguments are as follows:
- A shortcut to add absolute references to your formula values is to select the formula portion and clickF4, which adds the $ to your formula. The first click will add the $ to both the column and row. ClickF4again to add $ to just the row number, and click a third click time add $ only to the column letter.
- Copy yourVLOOKUP formulain cellF3.
- Select the remainder ofColumn Fwithin your table.
- ClickPaste.
- Click在ter. See the result in the image below.
What Is the Column Index Number in a VLOOKUP
This is one of the more confusing, but surprisingly simple, arguments in a VLOOKUP function. TheColumn Index Number再保险presents how many columns from the left-most column that you want Excel to search within and return a value. Regardless of how complicated the remainder of your formula gets, your col_index_num is always a simple integer, greater than or equal to 1.
In this example, there are three columns (Full Name, Department,andSalary). You are looking for an employee’s salary, so enter 3 for thecol_index_num. If you entered1, the formula would return the employee’s full name. If you entered2, the formula would return the employee’s department.
VLOOKUP Example with Wildcards
Often, when importing data into Excel from other databases, you run into the problem of leading or trailing spaces. This is especially true of accounting systems. For the leading spaces, consider either using文本列or theTRIMfunction. For trailing spaces, you can use either theTRIMfunction or add wildcards into yourVLOOKUPfunction. The simplest fix is adding wildcards.
Wildcards are characters that tell Excel that you are not exactly sure what you want to fine. You may use certain strings or characters to search for something. There are two key types of wildcards in Excel: the question mark (?) and the asterisk (*). Use the question mark in exchange for any single character. For example, “B?ll” returns “Bill” or “Bull”. Use the asterisk in to exchange one or more number of characters. For example, “South*” returns “South”, “Southwest”, or “Southeast”. Using “(*)” returns anything enclosed by parentheses.
You may want to search for a staff member named “Betty” in your Excel database, but match against all possible outcomes, including “Betty Peterson”, “Betty Norris”, and “Betty Samson”. To do this search, you can use the wildcard character.
How to Use Wildcards in a VLOOKUP
Follow these steps to use a wildcard in your VLOOKUP formula.
1. Open the fileSample File for VLOOKUP Exercise.xls.
2. Click theVLOOKUP with wildcardworksheet tab. You will also use theExport_PayToDateworksheet. In this scenario, you have exported data from your accounting system (Export_PayToDate).
Perform a VLOOKUP of this accounting data to update column E (Paid To Date) in yourVLOOKUP with wildcardworksheet. Since this data is coming from your accounting system, there are numerous trailing spaces. For example, the column A exported label is “Full Name. “ (see how it includes a bunch of trailing spaces).
Since the lookup value does not have the trailing spaces, you will get an “#N/A” error. Using exact match logic, and a lookup value with no trailing spaces, means your query does not match any of the lookup column values because they contain trailing spaces from your accounting system’s export.
3.通配符在工作VLOOKUP functionwhen you meet two conditions. The lookup value must be a text string, and the fourth argument must indicate exact match logic. Since both of these conditions are met in the example, you would choose a wildcard based on the extraneous spaces, which is the asterisk.
4. Using the concatenation operator (&), join the lookup value in theVLOOKUP formulawith theasterisk (*).
The original formula was:
=VLOOKUP(B3,'VLOOKUP with wildcard'!A1:G55,6,FALSE)
With the wildcard concatenated in, add &”*” into the lookup value:
=VLOOKUP(B3&”*”,'VLOOKUP with wildcard'!A1:G55,6,FALSE). B3&”*”
That’s the lookup value, the value inB3and the * wildcard. When added to the spreadsheet, you’ll see this result:
How to Find Duplicate Values in Excel Using VLOOKUP
Experts consider one of VLOOKUP’s shortcomings to be that it only matches on the first instance of your lookup value, and does not make allowances for duplicate values. You could choose to remove the duplicate values and use a unique lookup value; however, there is another way to handle duplicate values that is less manual.
How to Handle Duplicate Values in Excel Using VLOOKUP
Follow these steps to find duplicate values with VLOOKUP.
1. Open the fileSample File for VLOOKUP Exercise.xls.
2. Click theVLOOKUP Duplicate Valuesworksheet tab. Notice that this is a subset of your staff salary table. However, you have two employees with the same name, John Smith. Fortunately, they work in different departments and since you know about this issue, there is a workaround you can use to separate your John Smiths and retrieve the correct information.
3.右键单击column Aand clickInsertfor a new column. This column will be added to the left of theFull Namecolumn.
4. Add a reference, a concatenate, and a COUNTIF formula together in a new cell A2.
This looks like =B2&”-“&COUNTIF(B$2:B2,B2).
Each formula part means:
B2 |
The original cell name you are referencing. |
& |
The concatenate symbol that joins parts of a formula. |
“-“ |
In quotes, this adds a written dash. |
COUNTIF() |
This function provides the counting number based on the range you put in and the criteria. |
B$2:B2, B2 |
This is the range your COUNTIF is looking for, with the row number kept as an absolute reference, but checking as it moves down the column for the same data. |

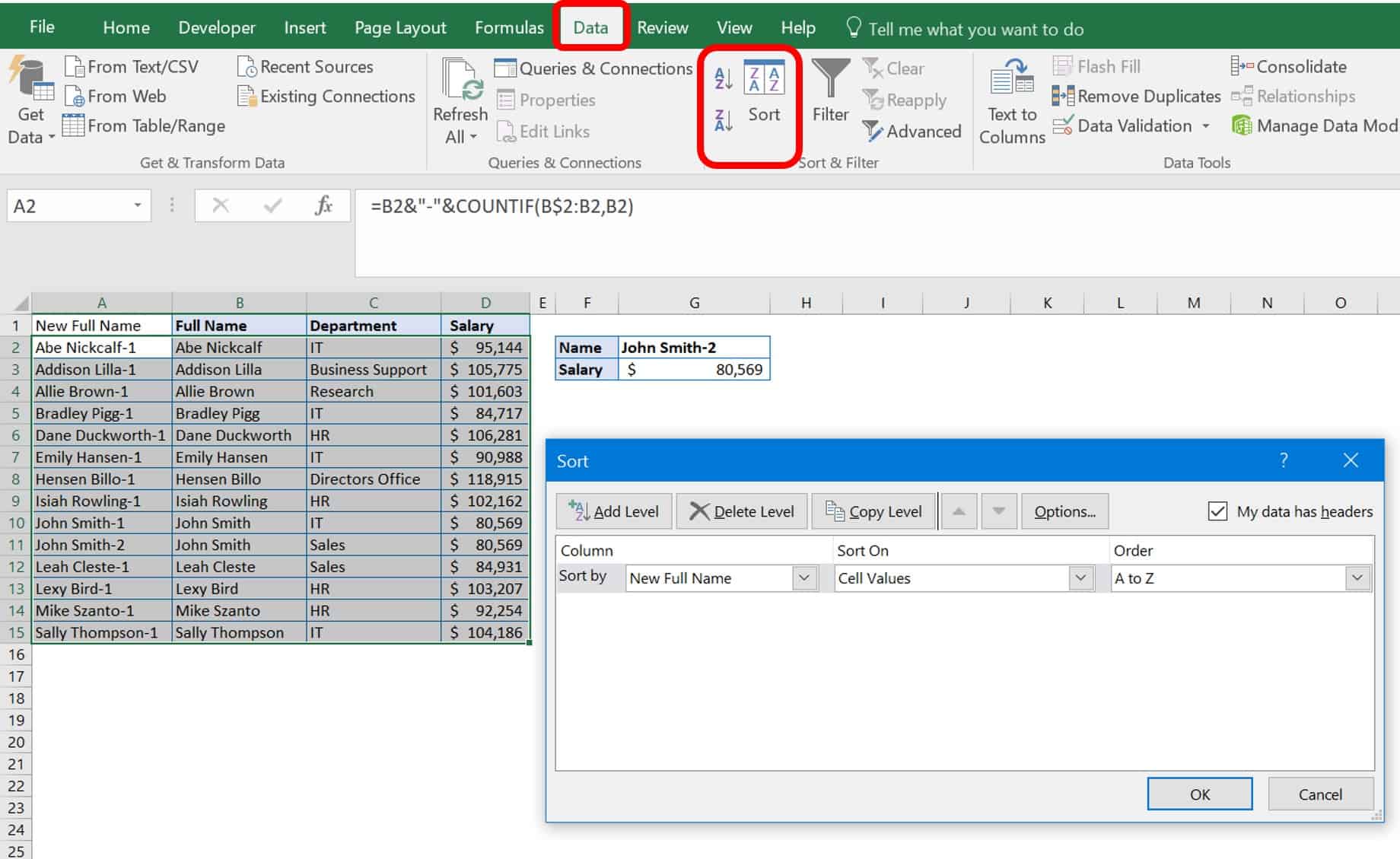

5. Sort your data table to view duplicates side by side. Select yourdata table. Click theDatatab. In theSort & Filtermenu, clickSort. Click the checkbox “My data has headers” and ensure the following are showing:
Column New Full Name
Sort On Cell Values
Order A to Z
Click theOkbutton. Now your John Smiths are next to each other, but delineated by a dash and a number 1 or 2.
6. Check yourVLOOKUP formulato ensure that it matches the current data table parameters. Since you added a column, you will need to update the VLOOKUP to reflect its presence. The formula should now read:
=VLOOKUP($G$2,A1:D15,4,FALSE).
What Is a Self-Contained VLOOKUP?
在软件编程中,一个独立的系统(SCS) is one whose functionality exists in independent systems. Although not a ubiquitous term, self-contained in the field of program functionality means that your formula is not looking at other code elsewhere. In Excel, a self-contained VLOOKUP means that your formula is looking inside itself, not in a separate table to find the lookup value.
You can perform a self-contained VLOOKUP as either an exact or approximate match. You have already learned that your VLOOKUP formula has four parts: lookup value, table_array, col_index_num, and [range lookup]. So to make a formula self-contained, somewhere in these arguments must exist all the values you will need for lookup. The simplest way is to turn your table array into an array constant. An array constant is the set of values you need within curly brackets {}.
How to Write a Self-Contained VLOOKUP Formula
Follow these steps for a self-contained VLOOKUP.
- Open the fileSample File for VLOOKUP Exercise.xlsand click theVLOOKUP Self-Containedworksheet tab.
- Set up your chart. In this example, there is a two-column chart with room to enter a score and the letter grade filled in by the VLOOKUP formula.
- 在ter the VLOOKUP formula with your four arguments. For thetable_arrayhowever, enter an array constant. What would normally be a range of cells such asC5:D25should look like {integer, “label”; integer, “label”…}. This array separates the elements by a comma between each related value and a semicolon before the next related pair. The whole array is captured between curly brackets {}. You do not need to click Ctrl+Shift+Enter as you would in an array formula. For this example, the formula reads:
=VLOOKUP(B3,{0,"E";62,"D";75,"C";83,"B";92,"A"},2,TRUE)
How to Avoid VLOOKUP Errors
So far, we have covered the glaring VLOOKUP errors and how to fix them. However, you can adhere to data table set-up best practices to avoid errors in the first place. These include:
Practice |
Explanation |
Set the left column to contain the values being referenced. |
VLOOKUP only looks to the right of the lookup value in your table. It cannot look left, so the first column in a table must include your lookup values. |
Have a unique identifier or item code column in your table for each entry row. |
Unless you add the workaround for duplicate values, this is what differentiates your data rows from each other. |
Keep cell references constant. |
Errors will return if you do not make absolute cell references and copy/paste your data. |
For approximate matches, you must sort data. |
Approximate matches return the next largest value that is less than the lookup value. |
Inserting a column may break existing VLOOKUP formulas. |
A VLOOKUP formula is based on “where” Excel is looking relative to your first column. If you add or subtract a column, it changes the data in the specified column. |
Why Is My VLOOKUP Returning a VALUE Error?
Generally, Excel displays the #VALUE! Error if the formula uses the wrong data type. A #VALUE! is Excel’s way of telling you that there is something wrong with the formula you have typed or the cells you referenced. The chart below offers the three most common reasons you will get a #VALUE! Error and how to fix them:
Problem |
Fix |
Your lookup value has more than 255 characters. |
Use the analogousINDEX_MATCH |
You are pulling data from another workbook, and the full path to the lookup workbook is not in the formula. |
在close the name of the workbook you are referencing in square brackets [ ] specifying the worksheet’s name, followed by an exclamation point (!). Surround the whole name with apostrophes (‘ ‘). For example, ‘[workbook name]sheet name’!Cells |
Your Column Index number is less than 1. |
TheCol_index_numshould be ≥1 |
Things to Remember About the VLOOKUP Function
Now that you know how to set up a VLOOKUP formula, the following list has pointers to help you remember how to set it up in the future. So, remember this:
- VLOOKUP retrieves data based on a column number.
- VLOOKUP always finds the first match.
- VLOOKUP is case-insensitive.
- VLOOKUP has two matching modes: exact and approximate.
- VLOOKUP uses approximate match by default.
- Named ranges make VLOOKUP formulas easier to read when writing them.
- Use a separate worksheet for your database tables.
- You can use ROW or COLUMN to calculate a column index.
- You can use VLOOKUP to replace nested IF statements.
- VLOOKUP can only handle searching for a single criterion.
- Use F4 within the formula (cursor needs to be on a cell range) to make your cell references absolute.
- Two VLOOKUPS are faster than one VLOOKUP
Other Excel Functions Similar to VLOOKUP
There are other functions in Excel that are similar to VLOOKUP and also functions that perform almost the same job as VLOOKUP. For example, HLOOKUP is similar because it looks up and retrieves data, but it does so based on horizontal placement in a table or list. Instead of looking down in the table, the formula specifies moving horizontally to the right. Your choice of function is based on how the original table is set up.
As you can see, the data in this table is a portion of our employee data, but arranged horizontally across the page. You can perform the same lookup function, only with a small tweak of using the HLOOKUP function.
INDEX and MATCH are two other functions that when performed together have the same functionality as VLOOKUP. These functions tell Excel what array (or data set) to look at, and where to match data from and to.
As you can see from the example, we found the salary of Allie Brown using the same data setup as our VLOOKUP, but with a combination of two different functions. Some experts say that INDEX- MATCH has better functionality than VLOOKUP for the following reasons:
- Insert or Delete Columns Without Breaking Your Formula:In VLOOKUP, if you delete or insert extra columns, your formulas will need to be updated because you change where your formula looks for data. The column number you specify in your VLOOKUP formula changes if you add or remove a column.
- VLOOKUP Only Looks Right:In VLOOKUP, Excel cannot look right and left. The lookup value must always be in the left-most column. This requirement does not limit INDEX-MATCH.
- VLOOKUP Processes Slower:With small tables, you would hardly notice slow processing. However, with hundreds or even thousands of rows of data, VLOOKUP is slower than INDEX-MATCH because it must search every row of data. INDEX-MATCH looks only at the specified row and column.
- VLOOKUP Has a Character Limit:VLOOKUP only allows you to have 255 characters in your lookup criteria, or it will return an error. INDEX-MATCH can lookup character strings that are longer than 255 characters.
Connecting Data Across Your Work with VLOOKUP in Smartsheet
让你的人去超越flexible platform designed to match the needs of your team — and adapt as those needs change.
The Smartsheet platform makes it easy to plan, capture, manage, and report on work from anywhere, helping your team be more effective and get more done. Report on key metrics and get real-time visibility into work as it happens with roll-up reports, dashboards, and automated workflows built to keep your team connected and informed.
When teams have clarity into the work getting done, there’s no telling how much more they can accomplish in the same amount of time.Try Smartsheet for free, today.
